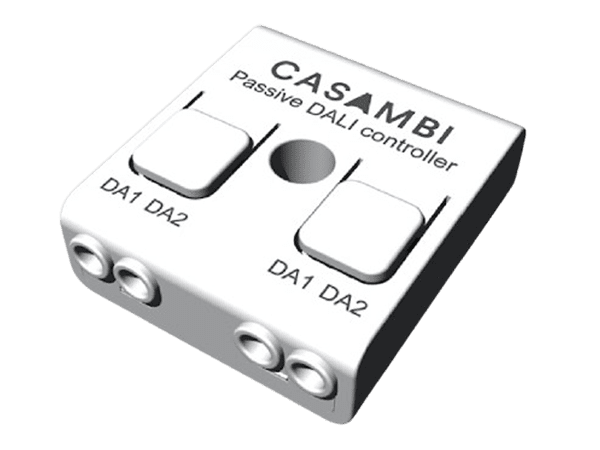

CBU-DCS
The CBU-DCS is a Bluetooth-controllable, Casambi-enabled DALI controller designed to integrate DALI-compatible devices into the Casambi wireless lighting control system. Notably, the CBU-DCS does not have its own power supply; instead, it draws power directly from the DALI bus
Type: Casambi Controller
Key Features
DALI Device Integration: Enables the incorporation of DALI drivers and sensors into the Casambi network, supporting functionalities such as presence detection and daylight harvesting.
Device Type Support: Compatible with various DALI device types, including Device Type 6 (DT6) for standard dimming and Device Type 8 (DT8) for tunable white and RGB color control.
Parallel Connectivity: Equipped with two sets of connectors that are internally connected in parallel, facilitating straightforward routing of the DALI bus through the device for easier installation.
Casambi Ecosystem Integration: Seamlessly integrates into the Casambi wireless lighting control system, allowing intuitive control via the Casambi app available on iOS and Android devices.
Benefits
Wireless Control: Eliminates the need for additional wiring by enabling wireless management of DALI-compatible lighting systems through smart devices.
Versatility: Suitable for various applications, including controlling multiple lighting zones or integrating with sensors for automated lighting responses.
Energy Efficiency: Facilitates energy-saving strategies like daylight harvesting and occupancy-based lighting control when used with compatible sensors.
Technical Details
Input
DALI Bus
Voltage range
9,5 – 22,5 VDC
Max. input current when idle
5 mA
Peak input current
30 mA
Max. DALI bus current
250 mA
DALI loads
3
Dimensions
40,4 x 36,3 x 14,0 mm
Weight
15 g
Protection
IP20 (indoor use only)
