220V Powered – Operates without batteries for continuous and reliable performance.
Rotary Switch for Smooth Dimming – Provides precise manual dimming control.
Three Programmable Push Buttons – Can be customized for scene activation, brightness control, or switching functions.
Two Integrated Relays – Allows direct control of non-dimmable loads.
Premium AG Glass Material – Stylish and durable design, available in white or grey

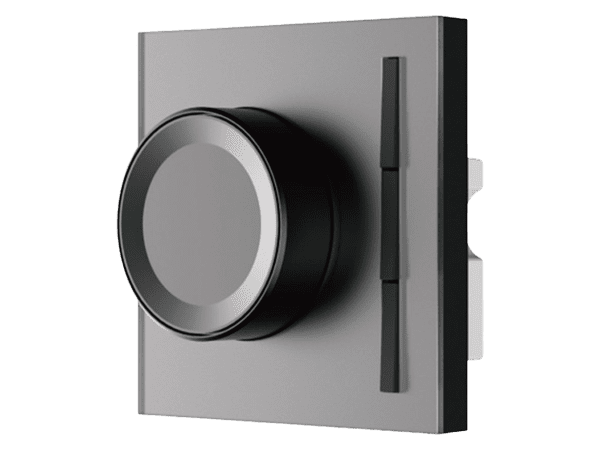

Siqitech D1 Rotary Dimmer 3-Button
D1 Knob Design can be used as a control panel for a single scene such as controlling the brightness , colour temperature and colour of lights in different time zones
Type: Siqitech Switch
Key Features
Benefits
- Precise & Intuitive Dimming – The rotary switch provides smooth and accurate dimming control for enhanced lighting adjustment.
- Reliable & Maintenance-Free – 220V powered, eliminating the need for batteries and ensuring continuous operation.
- Multi-Function Control – Three push buttons allow users to control scenes, brightness presets, or switch lights on/off conveniently.
- Built-in Relays for Direct Switching – Two integrated relays enable direct control of non-dimmable loads, adding more versatility.
- Premium & Elegant Design – Made from AG glass material, available in white or grey, offering a stylish and modern look for any space.
Technical Details
Product Size – 86X86X25.4mm
Bottom Shelf Depth – 28mm
Package Size – 100 X 100 X 60mm
Installation mode – 86 Mounting box depth >50mm
Input voltage – 200-240 VAC 50-60 hz
Network Mode – Bluetooth
Material – Aluminium /PC
Fire rating – 94-v0
Working Temperature – -10c – +60c
Working Humidity – <95 % RH , Non – Condensing
