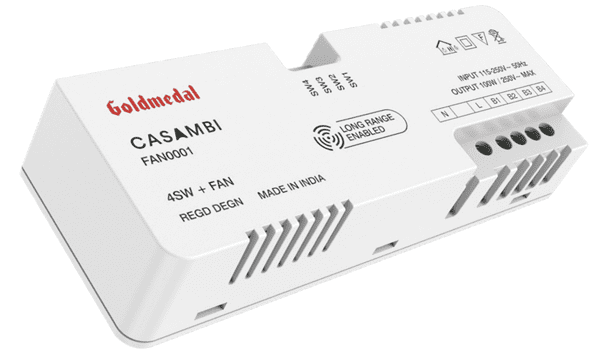

Goldmedal Casambi Fan Controller
Programmable 8-step Fan speed Control: Enables precise control of fan speed accorss 8 adjustable steps.
Type: Casambi Controller
Key Features
High load Capacity:Supports a maximum load of upto 100W
No requirement for BLDC fan.
Covers upto 50mts indoor range and upto 185mts open air.
4 programmable Push-Button Input Supports : 4 individual push-button (bell-push) inputs, each of which can be independently programmed to control any function within the Casambi network.
Ultra-Compact, Flexible Installation :Designed for easy integration into flush-mounted boxes or cable ducts, ideal for space constrained retrofit or new installations.
Multifunctional Input Options Each button can trigger a variety of actions including: scene control, group switching and dimming.
Benefits
Smooth Fan Speed Control
Allows precise adjustment of fan speed via Casambi app—no need for traditional regulators.
App-Based Convenience
Control your fan wirelessly using the Casambi mobile app—anytime, anywhere.
Seamless Integration
Easily integrates into existing Casambi lighting networks for unified control of lights and fans.
No Additional Wiring
Fits behind standard switchboards with minimal modification—ideal for both new and retrofit projects.
Technical Details
Input
Voltage range 115-250 VAC
Frequency 50Hz
Mains Output
Max. Load 100W
Voltage range 115-250 VAC
Frequency 50 Hz
Radio transceiver
Operating frequencies 2402…2480 Mhz
Maximum output power +8 dBm
Operating conditions
Ambient temperature, ta -20…+50°C(Iout 0 A)
Max. case temperature, tc +75 °C
Storage temperature -25…+75 °C
Max. relative humidity 0…80%, non-cond.
