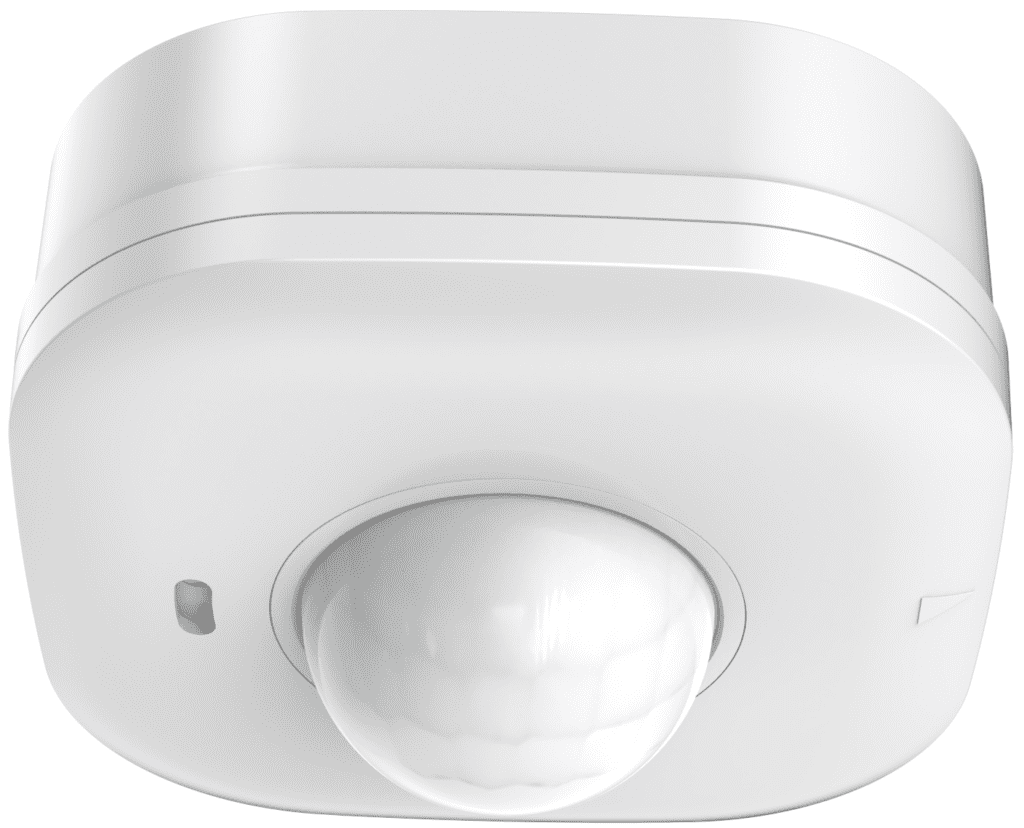

High-mounting PIR motion sensor
Passive infrared occupancy and daylight sensor.
Type: Merrytek Sensor
Key Features
- PIR motion detection
- Connect to Casambi seamlessly
- Accurate motion detection with one channel ON/OFF output and Casambi
communication - Daylight sensor detection available
- Detection area,hold time can be set by Casambi app
- Max detection range: 8-10m in diameter
8m max mounting height
Benefits
Hands-Free Automation – Automatically turns lights ON/OFF based on motion, enhancing convenience and energy savings.
Accurate Motion Detection – Ensures reliable detection with a dedicated ON/OFF output and Casambi communication.
Energy Efficiency with Daylight Sensing – Adjusts lighting based on ambient light levels to reduce unnecessary energy consumption.
High Mounting Flexibility – Works efficiently when installed at heights of up to 8m, ideal for various indoor applications.
Technical Details
Input/Output
Input voltage 100-240Vac
Rated voltage 230V ac
Working current 20mA max
Power consumption ≤0.5W @230V AC
Output signal 1 channel ON/OFF+Casambi BLE
Sensor Parameters
Function PIR motion detection+ daylight sensor
Detection Area Casambi app or MH10 remote setting: 100%/75%/50%/25%
Sensor Hold Time MH10 remote setting：2S/30S/60S/3Min/5Min/20Min/30Min
Daylight Sensor 0-1200lux
Radius detection
range(based on 100%
sensitivity)
4-5m@25℃ based on 6m mounting height
Remote control Available
Mounting height 2-8m, typical value:6m
