Scene-10-cas

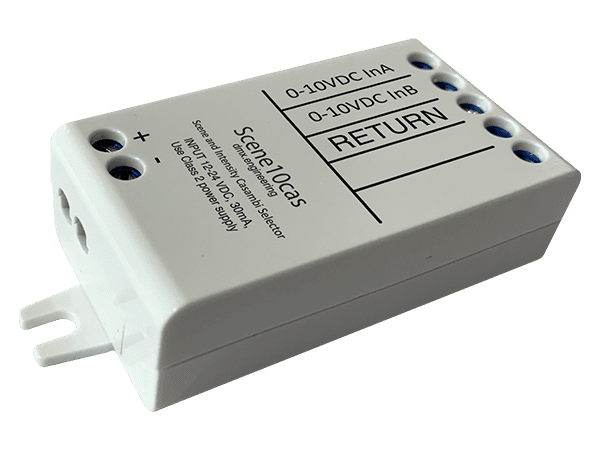

The Scene10cas is a Casambi-enabled gateway device designed to interface with standard 0-10V DC analog dimming master controllers. It facilitates the remote selection and control of predefined Casambi scenes and their intensities using analog control signals. By connecting the Scene10cas between a 12-24 VDC Class 2 power supply and a two-channel 0-10V DC master controller, users can seamlessly integrate traditional analog controls into the Casambi wireless lighting ecosystem.
Type: DMX Engineering Misc
Key Features
Dual 0-10V DC Channel Integration:
First Channel: Divides the 0-10V input into voltage segments, each corresponding to a specific Casambi scene. This allows for the selection of up to 10 predefined scenes based on the voltage level.
Second Channel: Provides 0-100% intensity control for the selected scene, enabling precise adjustment of lighting levels.
Configurable Voltage Trim and Hysteresis:
Offers settings to adjust for installations where 0-10V DC levels may not reach full range or are subject to noise, ensuring stable and accurate scene selection and intensity control.
Casambi App Integration:
Utilizes the Casambi app for configuration, allowing users to map voltage levels to specific scenes and set intensity controls with ease.
Benefits
Seamless Analog-to-Digital Integration:
Enables existing 0-10V DC analog controllers to interface with the Casambi wireless network, bridging the gap between traditional and modern lighting control systems.
Enhanced Control Flexibility:
Allows for dynamic scene selection and intensity adjustments, providing users with versatile lighting control options.
Simplified Installation:
Compact design facilitates easy integration into existing setups without extensive modifications.
Technical Details
INPUT
Voltage range: 12-24 VDC, Class 2
No-load input current: 30 mA
0-10VDC Input (A and B) Configuration
3-wire non-isolated DMX-512
2-wire analog 0-10VDC,
two channels 1mA source current, the input must sink for control Top and bottom “trim” and hysteresis user programmable Casambi Vendor Parameters
Scene Control/Selection
Number of Scenes – determines the voltage window range for each Scene.
For example, if 4 Scenes are desired, this sets the voltage window to 2.5V (10V/4 = 2.5V) per Scene
Channel 1—Scene selection
Channel 2—Intensity level
RADIO TRANSCEIVER
Operating frequencies: 2.401-2.483 Ghz
Maximum output power: typ. +0 dBm, +/-3dBm
OPERATING CONDITIONS
Ambient temperature, ta: -13…+113°F (-25…+45°C)
Max. case temperature, tc: +167°F (+75°C)
Storage temperature: -13…+167°F (-25…+75°C)
Max. relative humidity: 0…80%, non-cond.
CONNECTORS
Wire range, solid & stranded: 0.5 – 1.5 mm2
14 – 22 AWG
Wire strip length: .25” (6 – 7 mm)
Tightening force: 0.4 Nm / 2.6 Lb-in
