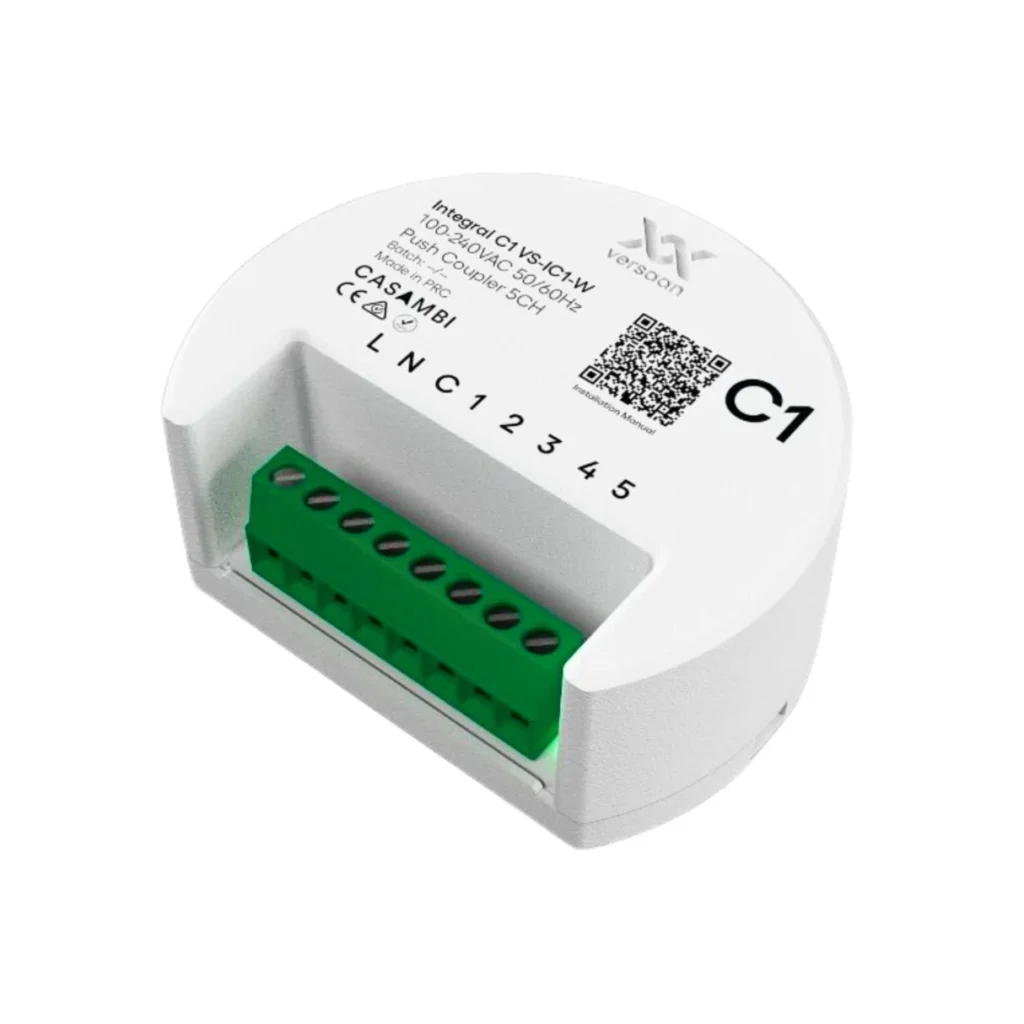

Versaan VS-IC1-W
Compact Multi-Input Controller:Perfect for small spaces like switch boxes, the integral C1 offers 5 push-button input for use with traditonal switches.Each input can be configured via the Casambi app for on/off, dimming, scene control, and more.Part of the integral range, it supports control of DALI, phase-dim,Relay, and PWM luminaries.
Type: Push Button Controller
Key Features
Supports up to five push buttons – Allows connection and configuration of up to five individual push buttons for flexible control.
Multiple control functions – Each button can be programmed for on/off switching, scene activation, dimming, and other advanced functions.
Full lighting functionality – Ensures comprehensive control to meet various lighting requirements.
Integration with Casambi ecosystem – Works seamlessly with all Casambi-enabled devices for expanded capabilities.
Scalable from small rooms to large buildings – Can manage lighting in spaces of any size using the Casambi mesh network for reliable communication.
Benefits
Seamless Push‑Button Control via Casambi
Allows up to five push‑button inputs (traditional wall switches) to trigger Casambi-controlled lighting scenes, dimming, and On/Off logic.
Intuitive App & Physical Control
Combines app-based Casambi control with physical buttons, giving users both tactile and mobile access to lighting functions—ideal for both guest and primary control use cases
Mesh Networking without a Hub
Functions as a native Casambi node—wireless control via Bluetooth mesh network with no central controller required, ensuring resilience, scalability, and ease of deployment
Technical Details
Dimensions (VS-IC1-W): 52 × 42.51 × 22 mm
Dimensions (VS-ISM-W): 74.75 × 55.10 × 24.69 mm
Control: Casambi
Wireless Range: 98 m / Long Range 180 m (Open Area Line-of-Sight)
Supply: 100–240 VAC, 50/60 Hz
Input: 5 × Push Buttons
Type: Live / Energised
Operating Temperature: 0 to 55 °C
Wiring: Loop in / Loop out
Terminal Capacity: 1.5 mm²
Mounting Screws: 2 × M3 Flat Head
Screw Centres: 25 mm
Material: Flame-Retardant ABS + PC
Ingress Protection: IP20 (Indoor use only)
Transceiver Frequency: 2.4 GHz ISM Band
