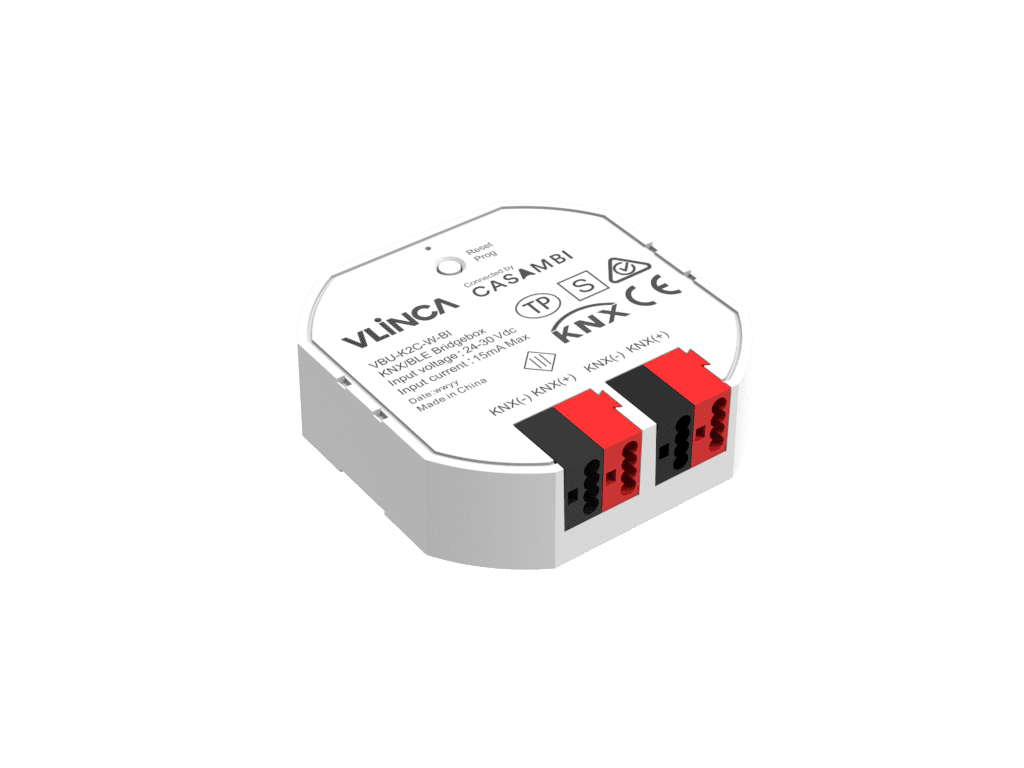

Vlinca KNX-Casambi Bridge
VBU-K2C-W-BI is bridge between the KNX system and Casambi network, enabling seemless interconnection between the two.
Type: Casambi-KNX Bridge
Key Features
Can register upto 32 KNX channels and 32 Casambi scenes.
Create 16 bi-directional scenes between KNX and Casambi.
Benefits
Seamless KNX–Casambi Integration
Bridges wired KNX systems with wireless Casambi lighting networks for unified control across platforms.
Smart Scene Execution
Trigger Casambi scenes using KNX switches, touch panels, or automation events for coordinated building control.
Wireless Expansion Without Rewiring
Add Casambi wireless devices to existing KNX installations—ideal for renovations or expanding system capabilities.
Suitable for All Projects
Perfect for smart homes, commercial offices, hotels, and retrofit environments requiring hybrid automation.
Technical Details
Control Bus: KNX / EIB
Input Voltage: 24–30V
Input Signal Port: Two-channel dry contact signals / one 24V signal
Output Signal: Bluetooth
Drain Bus Current: < 15 mA
Output Range / Distance: >50 m (no barriers)
Installation: Built-in 80 / 86 mm junction box
Dimensions: 50.6 x 50.6 x 15 mm (L x W x H)
Degree of Protection: IP20
Color: White
