The Casambi Ecosystem

The mesh has no centre.
Every node is the network.

Drivers, sensors, relays, and bridges form the powered mesh core — every node relaying signals for every other. Switches and the app sit outside the mesh as pure interfaces: they send commands in, but the network runs without them.

Self-healing mesh No control wiring App commissioned
Mesh Core Nodes
LED Drivers
Sensors
Relay
Curtain
DALI Bridge
0-10V Retrofit
Control Interfaces (outside mesh)
Switches
Casambi App

How it works

From power-on to
fully commissioned

Every device on this page follows the same three-step process — no matter how complex the installation.

Power on & pair

Connect the device to its existing circuit — mains, SELV, or DALI. The embedded Casambi module broadcasts over Bluetooth Low Energy instantly. Open the Casambi app and it appears automatically. No IP addressing, no pairing codes.

Mesh forms automatically

Each device becomes a relay node the moment it joins. Signals hop between devices — drivers relay for sensors, sensors relay for switches. The mesh is self-healing: if one node loses power, the network reroutes in milliseconds.

Configure everything in-app

Name devices, assign to zones, build scenes, schedule daylight harvesting, and link sensors to luminaire groups — all from the app. Change any configuration later in seconds. No tools, no wiring, no engineer required.

Signal flow

How a single button press
controls your whole space

Input

Switch or Sensor

Button pressed, motion detected, or lux level crossed — event fires over BLE.

Propagation

BLE Mesh Hop

Signal hops across every powered node to reach its target — peer-to-peer Bluetooth Low Energy, no central controller in the loop.

Logic

Scene / Schedule

Each driver executes the assigned scene — dim levels, colour temperature, fade time — locally, autonomously.

Output

Light Changes

Fixtures, relays, and curtain motors respond simultaneously. The whole room transforms in under 300ms.

Live mesh in a real space

One floor plan.
One unified mesh.

Every device communicates directly with every other device. Remove any one — the mesh reroutes itself instantly.

The full ecosystem

Every device type.
One mesh.

Every product below is a full mesh node — not just a receiver. It relays signals for every other device around it.

LED Drivers

2 products · Embedded Casambi module
CCD 15-350-1

CCD 15-350-1

Unwired 6-15W 1CH Smart Driver

Single-channel 350mA constant-current driver with embedded Casambi. Powers downlights and spotlights. Dims from 0.1% to 100% flicker-free. Joins the mesh on first power-up with zero configuration.

Light Output
CCD 24-600-2

CCD 24-600-2

Unwired 6-24W 2CH Smart Driver

Dual-channel 600mA driver with embedded Casambi. Controls warm and cool LED channels independently for smooth tunable white CCT dimming. Ideal for human-centric lighting in offices and hospitality.

Tunable White Output

Sensors

2 products · Presence & Daylight
Merrytek MSA211 B

MSA211-B

Merrytek MSA211 B

Microwave presence sensor with embedded Casambi. 360° detection with adjustable sensitivity and hold time — all configurable wirelessly from the app. Ideal for open-plan offices and healthcare corridors.

Presence Detection

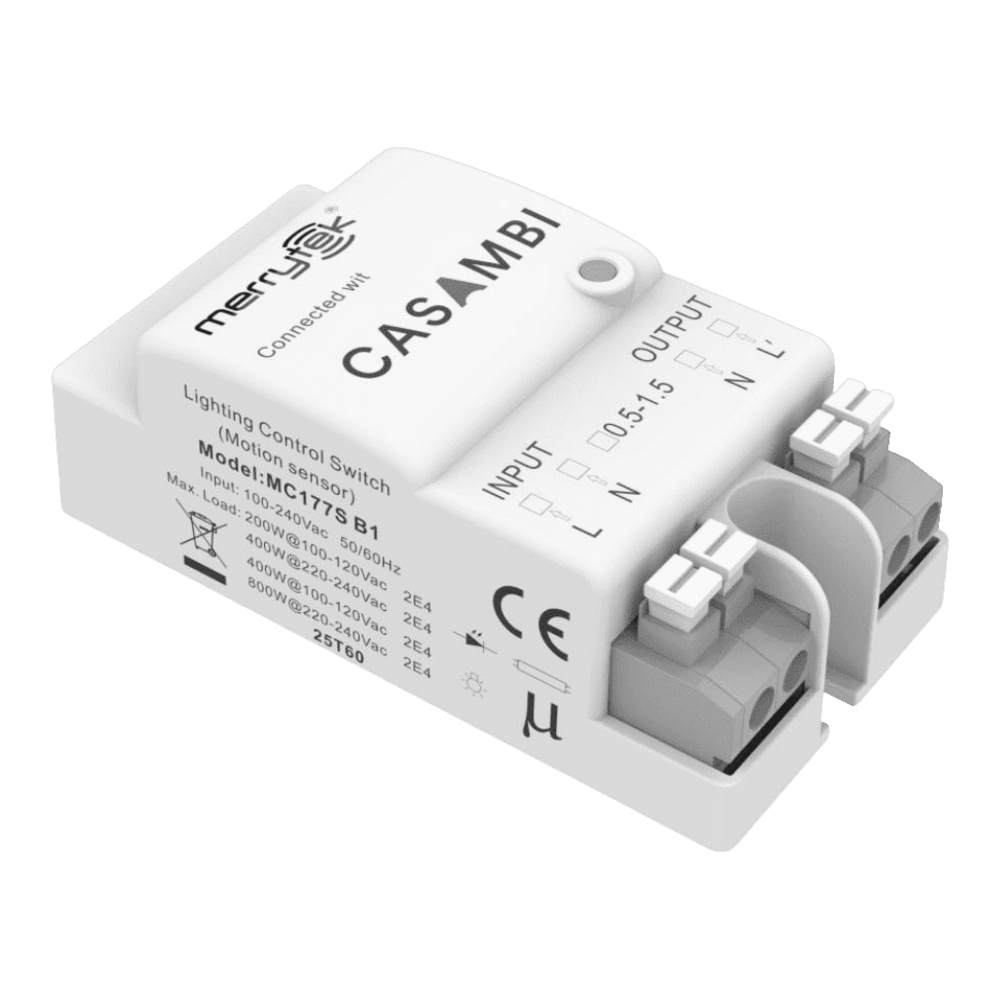

Merrytek MC177S-B1

MC177S-B1

Merrytek MC177S-B1

Combined 5.8 GHz microwave and daylight sensor with Casambi. Occupancy detection plus lux measurement in a single ceiling unit — enables automatic dimming when natural light is sufficient.

Presence + Daylight Harvest

Switches

3 products · Battery, Mains & Batteryless

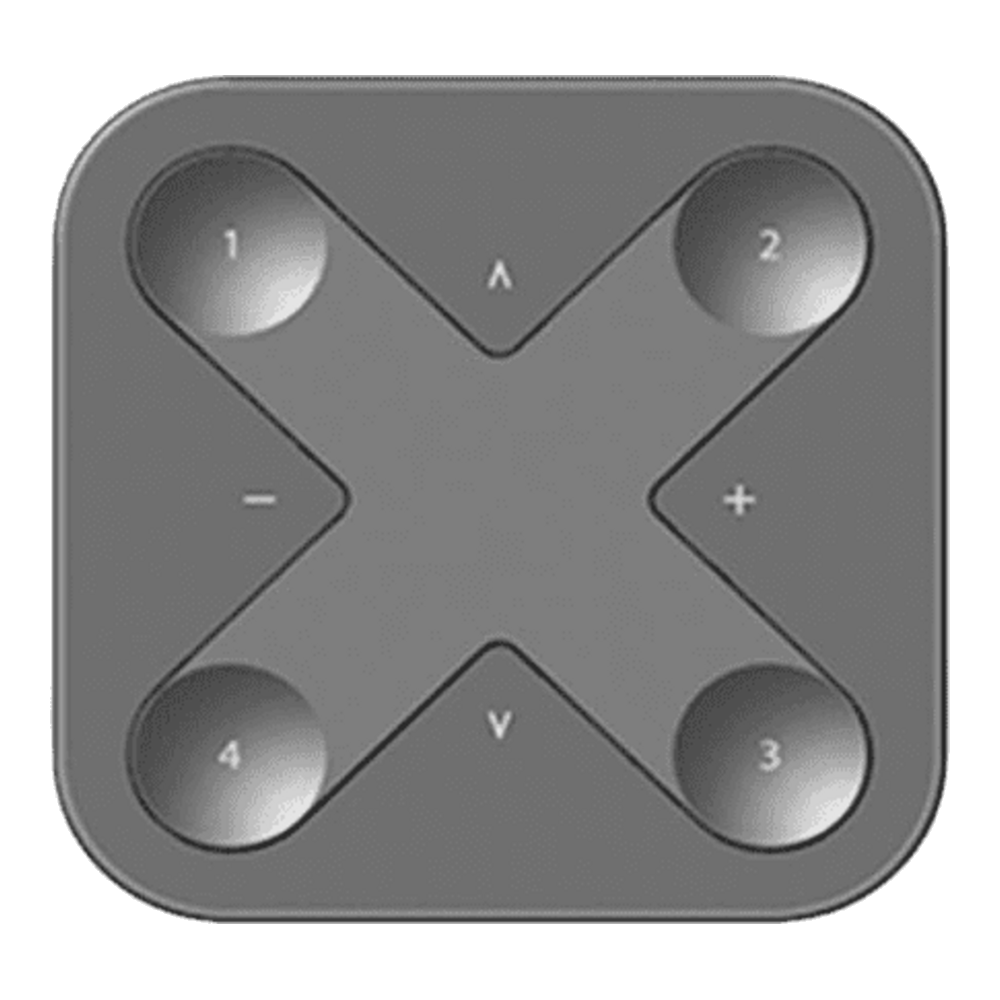

Casambi Xpress-LR

XPRESS-LR

Casambi Xpress-LR

Multi-button battery remote with extended BLE range. 5 configurable buttons for scene recall, dimming, or group control. Ideal as a boardroom controller or bedside panel.

Battery · 5 Button · Long Range
Siqitech D1 4-Button

D1-4B

Siqitech D1 4-Button Switch

Ultra-slim 4-scene battery panel with self-adhesive mount. Place it on any surface — glass, tile, furniture — with no wall penetration or backbox required. Reconfigure scenes entirely in-app.

Battery · 4 Button · Adhesive
Siqitech D1 6-Button Switch

D1-6B

Siqitech D1 6-Button Switch

6-scene battery-powered wireless switch. Completely wire-free — self-adhesive mount on any surface, glass, or furniture without breaking walls or running conduit. Reconfigure all 6 scenes entirely in-app.

Battery · 6 Button · Adhesive

Relay & Curtain Controller

2 products · Non-lighting loads

SCR-1CH

Single Channel Relay

Controls any mains load — fans, sockets, signage, appliances — as a full Casambi mesh node. Triggered by scenes, schedules, or sensor events. Integrate non-lighting equipment into your lighting automation seamlessly.

Mains Load Switching

CURTAIN-1CH

Casambi Curtain Controller

Drives motorised blinds and curtain tracks as a native Casambi mesh node. Link to the MC177S-B1 daylight sensor for automatic close when lux exceeds threshold — or tie to any scene or schedule.

Motorised Blind / Curtain

Retrofit & Integration Bridges

2 products · Bring existing infrastructure to Casambi

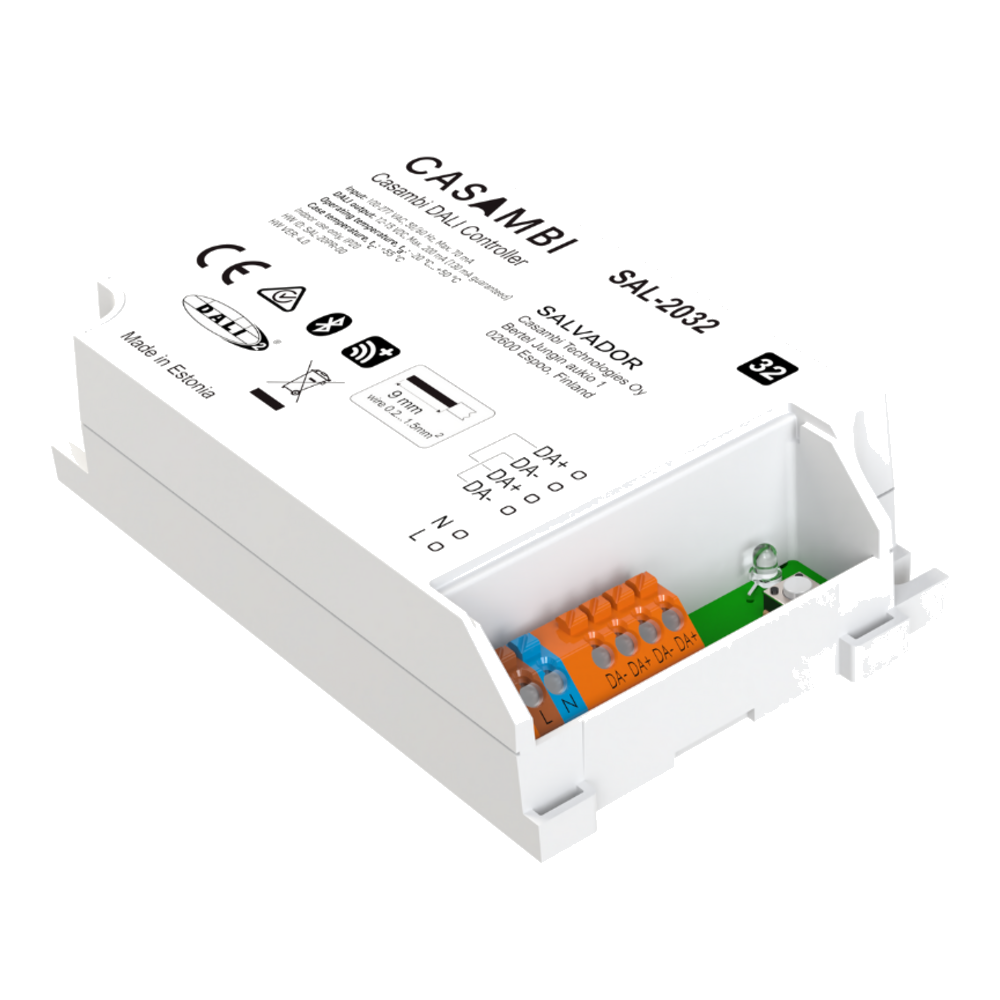

Salvador SAL-2032

SAL-2032

Salvador SAL-2032

Bridges up to 32 DALI driver addresses into the Casambi mesh. Every DALI luminaire behind the Salvador becomes a fully addressable Casambi node — individually dimmable, scene-programmable, sensor-linked. Built-in 130 mA DALI bus power.

DALI → Casambi Bridge

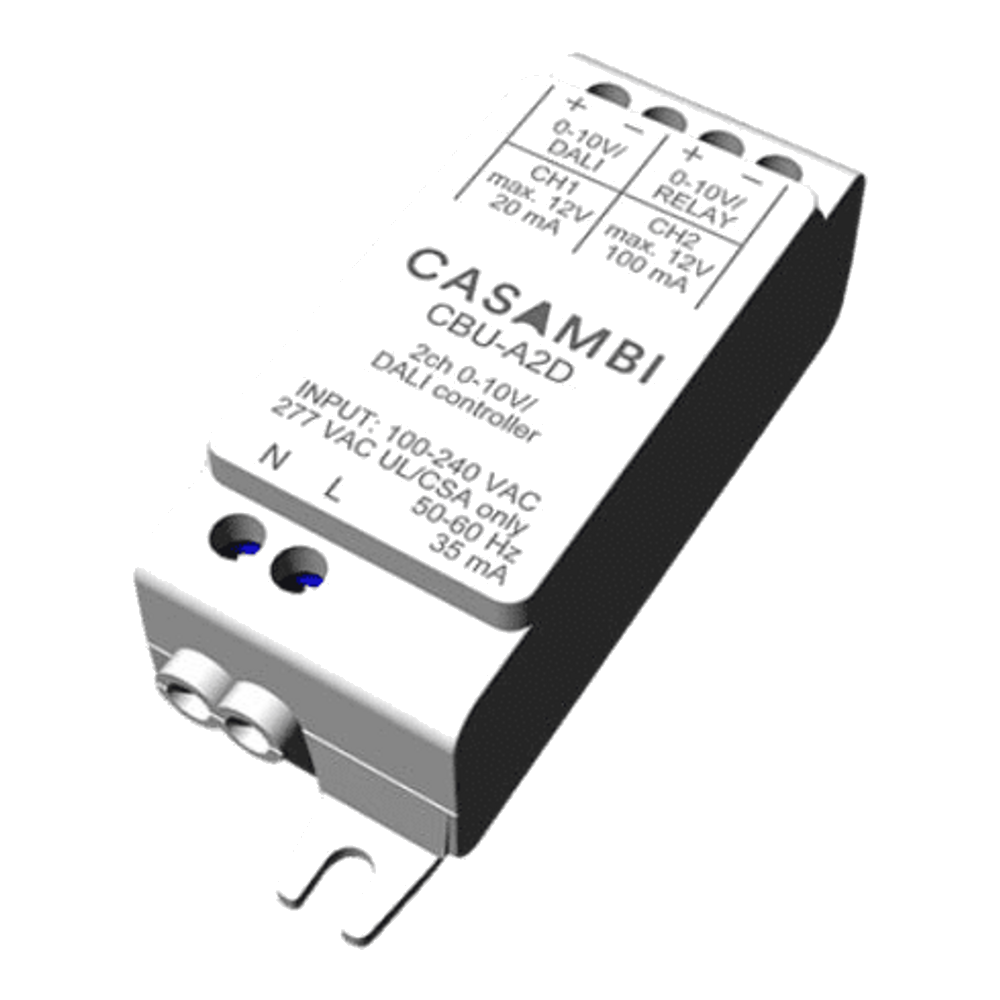

CBU-A2D

CBU-A2D

CBU-A2D

Converts any existing 0/1-10V analogue driver into a Casambi mesh node. Wire it between your existing driver and the analogue control input — no fixture change, no rewiring. Turns a legacy dim-and-hold system into a fully automated smart installation.

0-10V Analogue → Casambi
11
Device types in the
CasaNode ecosystem
250k+
Casambi projects
worldwide
0
Hubs or gateways
needed for operation
∞
Spaces scalable
without rewiring

Ready to build your mesh?

Spec the right products
for your India project.

CasaNode's team will recommend the exact product mix — drivers, sensors, switches, and bridges — matched to your floor plan. Pan-India supply and commissioning included.

Get a free specification Browse all products
