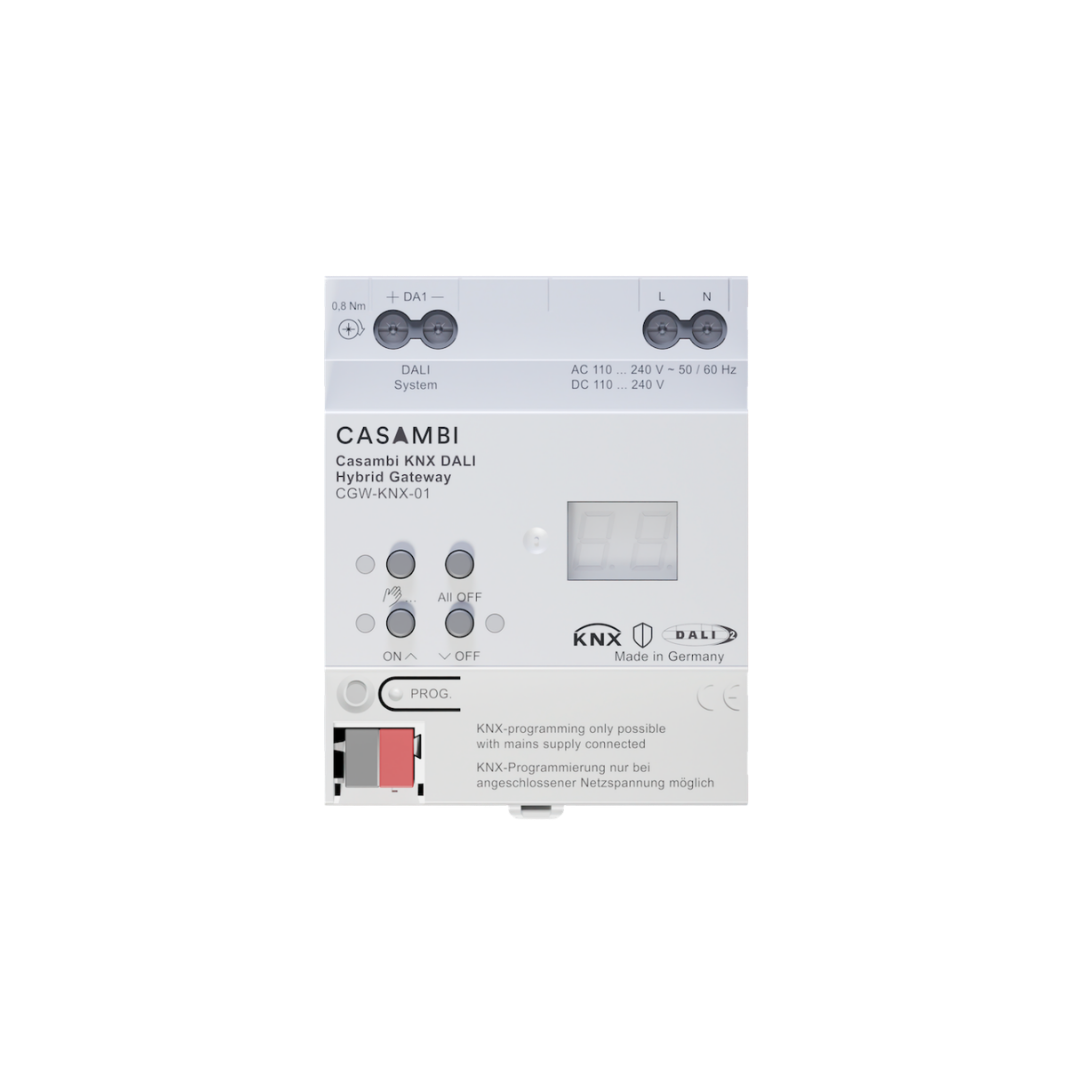

Bridges Casambi wireless-lighting networks to KNX building-automation systems in a single ready-made unit. Combines KNX, DALI, and Casambi control into one gateway so lighting scenes, dimming, and status all pass between the two ecosystems without a separate translation layer. Two models: CGW-KNX-01-B for up to 64 luminaires on a single DALI bus, and CGW-KNX-02-B for up to 128 luminaires across two DALI buses.
Key Benefits
Bridges Casambi wireless mesh to KNX building automation without a separate DALI-KNX translator. Scenes, dim commands, and status flow across both systems in a single ready-made unit — one point of failure, one point of commissioning.
CGW-KNX-01-B addresses up to 64 luminaires on a single DALI bus — ideal for smaller commercial projects. CGW-KNX-02-B doubles that to 128 luminaires across two independent DALI buses for multi-zone or larger installations.
Part of Casambi's 2025 push into wired lighting — engineered by Casambi itself for KNX-heavy installations where a genuine hybrid deployment is called for. Reliable, in-warranty, and supported through the same Casambi partner network.
Technical Specifications
| Models | CGW-KNX-01-B (1 × DALI, 64 luminaires) · CGW-KNX-02-B (2 × DALI, 128 luminaires) |
| DALI Buses | 1 (01-B) or 2 (02-B), independent |
| Max Luminaires | 64 per DALI bus |
| Bridged Protocols | Casambi ↔ KNX ↔ DALI |
| Wireless | Casambi BLE Mesh |
| Wired | KNX TP, DALI, Ethernet |
| Mounting | DIN rail (panel install) |
| Certifications | CE, RoHS, KNX certified |
| Manufacturer | Casambi (Finland) |
| Warranty | Casambi standard partner warranty |
