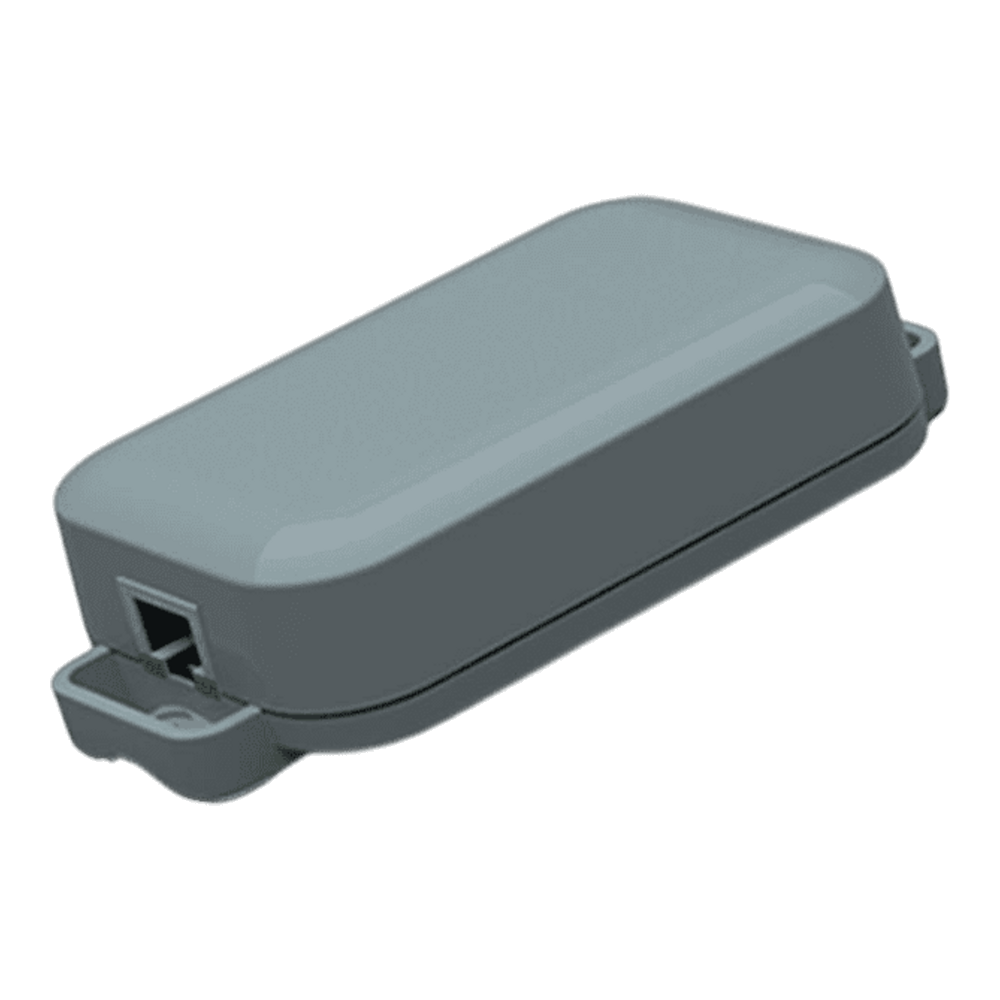

Bridges the Casambi BLE mesh to IP-based building management systems via Ethernet. Supports ArtNet, BACnet/IP, MQTT, HelvarNet, Eutrac, and UDP ASCII — enabling centralised BMS integration, third-party control, and multi-protocol interoperability over a standard Ethernet backbone.
Key Benefits
Connects the Casambi lighting mesh to building management systems over IP. BACnet/IP, MQTT, and other protocols allow centralised monitoring, scheduling, and control from an existing BMS platform.
Speaks ArtNet, BACnet/IP, MQTT, HelvarNet, Eutrac, and UDP ASCII out of the box. One gateway covers multiple integration scenarios — from show-control to enterprise building automation — without protocol-specific hardware.
Runs on the building's wired IP network with PoE power, avoiding the range and interference limitations of wireless-only links. Suited to large commercial fit-outs where uptime and deterministic control are critical.
Technical Specifications
| Network Interface | Ethernet (RJ45) |
| Supported Protocols | ArtNet, BACnet/IP, MQTT, HelvarNet, Eutrac, UDP ASCII |
| Wireless Protocol | Casambi (BLE) |
| Supply Voltage | PoE (802.3af / 802.3at) |
| Dimensions | 120 × 65 × 35 mm |
| Weight | ~95 g |
| Operating Temperature | 0°C to +40°C |
| Ingress Protection | IP20 |
| Certifications | CE, RoHS |
Downloads
Tell us your integration protocol and network layout and we will confirm the right gateway configuration for your project.
