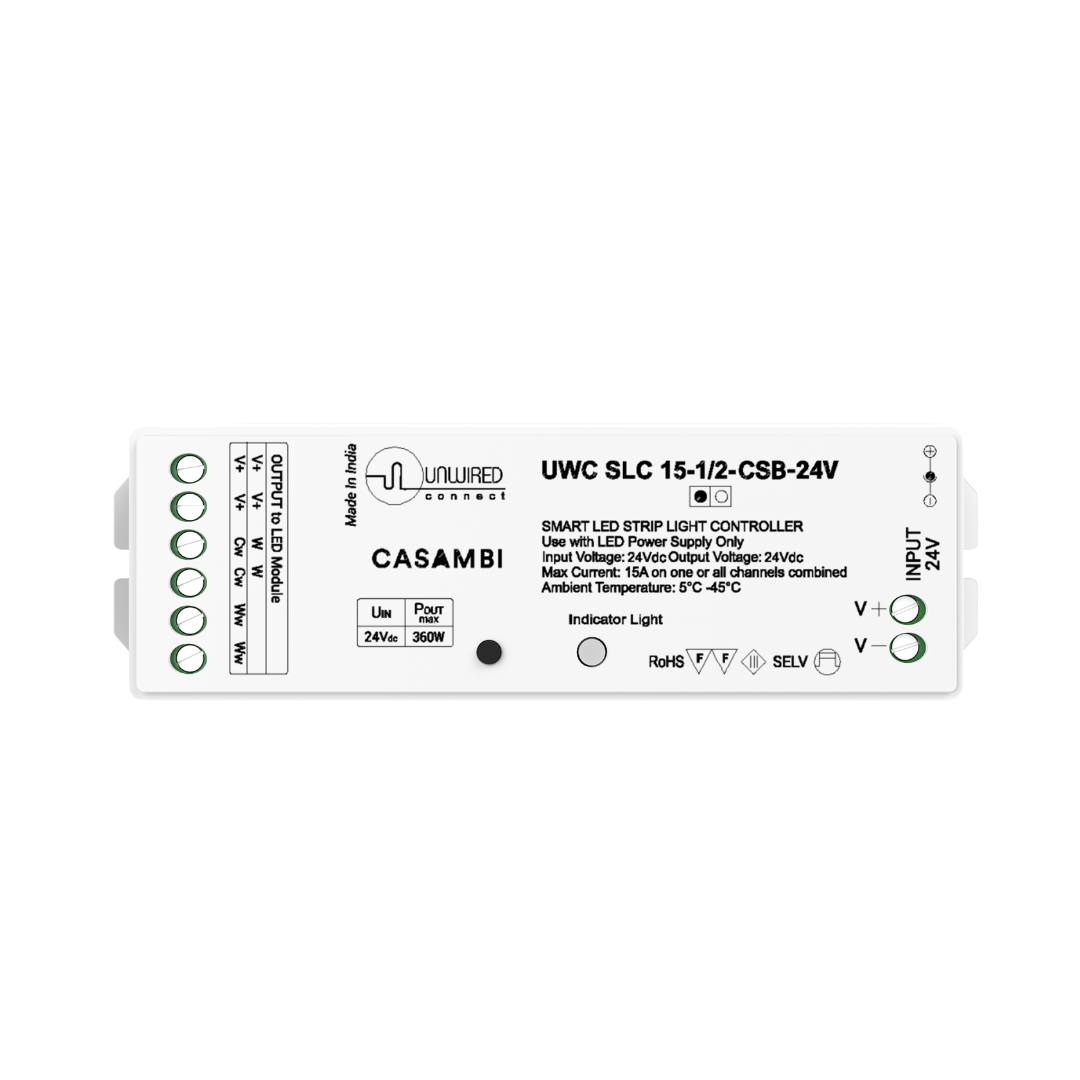

Two-channel PWM controller for 24V DC LED strip installations up to 360W total (max 15A). Compact in-fixture form factor with full Casambi mesh integration. Ideal for tunable-white and dual-zone strip configurations. Commissioning via the Casambi app — no specialist tools or PC software required.
Key Benefits
Delivers 15 amps of total output — 360 watts on a 24V DC rail — enough to drive long single-run tape or multiple parallel-fed segments without a second controller. Handles high-density strip and dense linear applications with margin to spare.
Two independent PWM channels — ideal for warm/cool tunable-white strip, or two separate zones on the same power supply. Casambi mesh handles the colour-temperature crossfade with no extra hardware.
All channel mapping, scene programming, and grouping happens through the Casambi app on a smartphone. No dedicated commissioning software, no dongles, no laptop connection required.
Technical Specifications
| Model | UWC-SLC-15-2-CSB-24 |
| Output Channels | 2 (independent PWM) |
| Supply Voltage | 24V DC |
| Max Output Current | 15 A total |
| Max Output Power | 360 W @ 24V DC |
| Strip Compatibility | Single-colour, Tunable White, dual-zone |
| Wireless Protocol | Casambi BLE Mesh |
| Form Factor | Compact module (in-fixture) |
| Ingress Protection | IP20 |
| Certifications | CE, RoHS |
| Configuration | Casambi app — no dongles or PC software required |
Get in touch with your project details and we will confirm stock and pricing within the same business day.
