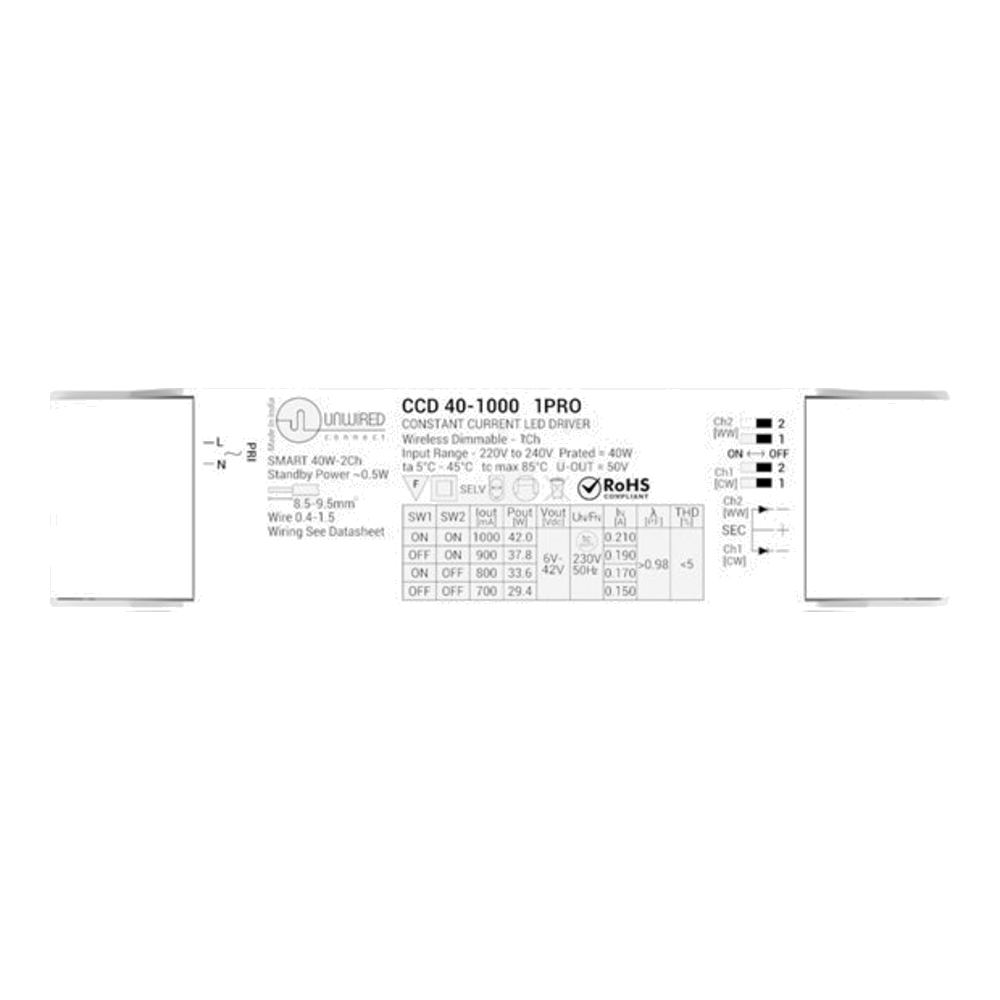

High-power single-channel 1000mA constant-current LED driver with embedded Casambi. Designed for high-wattage downlights, architectural wallwashers, linear LED profiles, and large pendant fixtures. The highest output in the single-channel CCD driver range.
Key Benefits
1000mA output handles high-power LED modules in architectural wash fixtures, large pendants, and industrial downlights — extending Casambi control to the highest-wattage single-channel fixtures.
Embedded Casambi module means this high-power driver joins the mesh network on first power-up — no additional commissioning hardware needed on site.
Constant-current output dims smoothly from 0.1% to 100% without flicker — essential for hospitality and theatrical environments where deep dim levels are specified.
Technical Specifications
| Input Voltage | 230V AC rated (165–270V AC operating), 50 Hz |
| Output Power | 15–42W |
| Output Current | Selectable: 700 / 800 / 900 / 1000 mA |
| Channels | 1 |
| Dimming Range | 0.1%–100% (flicker-free) |
| Wireless Protocol | Casambi BLE Mesh |
| Ingress Protection | IP20 |
| Operating Temperature | +5°C to +45°C |
| Case Max Temperature | +85°C |
| Dimensions | 166 × 40 × 28 mm |
| Output Voltage | 15–42V DC |
| Dimming Type | PWM |
| Efficiency | ~85% |
| Power Factor | >0.98 |
| THD | <5% |
| Insulation Class | Class II |
| Certifications | CE, RoHS |
Get in touch with your project details and we will confirm stock and pricing within the same business day.
