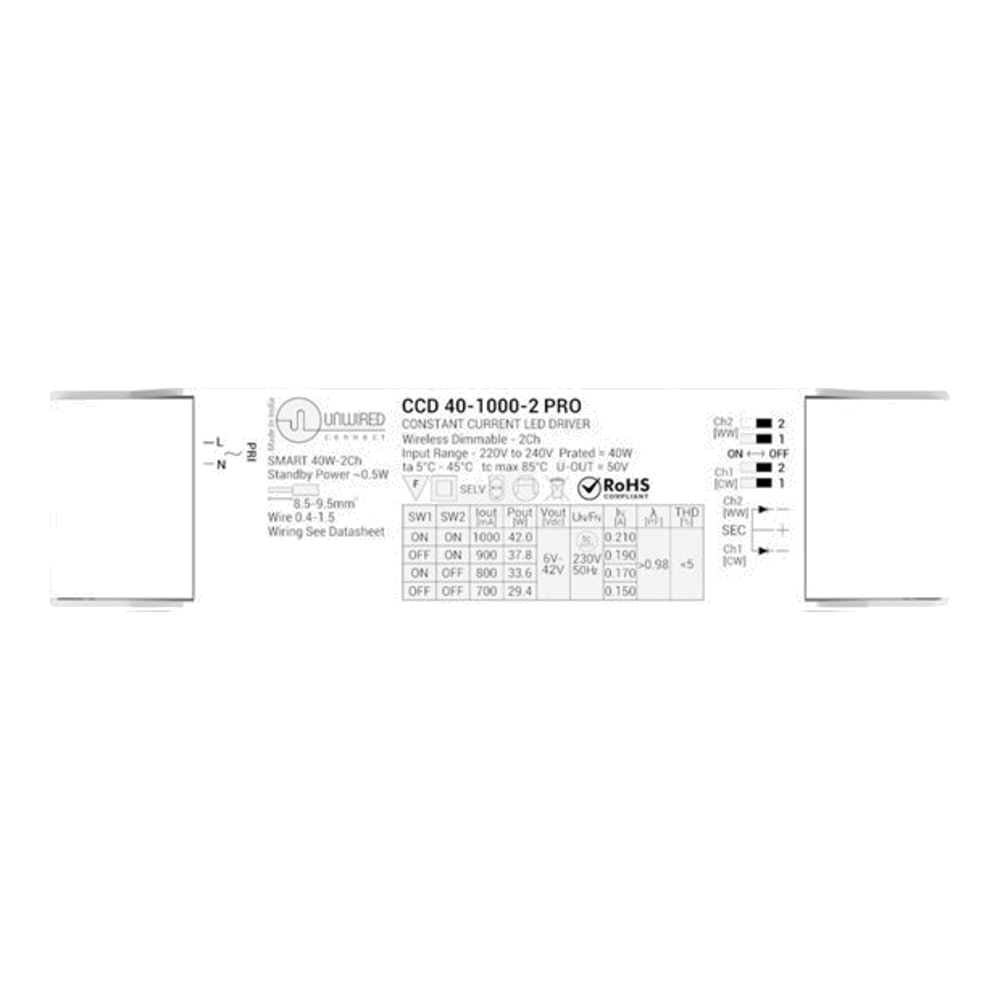

The highest-power dual-channel driver in the CCD range. Two independent 1000mA constant-current outputs enable full tunable white control of high-wattage fixtures — ideal for large-format architectural pendants, linear LED profiles, and high-output downlights where CCT tuning is specified.
Key Benefits
Two 1000mA channels cover the most demanding LED modules — enabling full CCT tuning in large architectural fixtures without splitting the load across multiple drivers.
Embedded Casambi joins the mesh on power-up. Compatible with any existing Casambi switch, sensor, or scheduled automation already running on the network.
Over-the-air firmware from Casambi adds new features and fixes over the product lifetime — no hardware replacement or site visits required to stay up to date.
Technical Specifications
| Input Voltage | 230V AC rated (165–270V AC operating), 50 Hz |
| Output Power | 15–42W per channel |
| Output Current | Selectable per channel: 700 / 800 / 900 / 1000 mA |
| Channels | 2 (independently controlled) |
| Dimming Range | 0.1%–100% per channel |
| Wireless Protocol | Casambi BLE Mesh |
| Ingress Protection | IP20 |
| Operating Temperature | +5°C to +45°C |
| Case Max Temperature | +85°C |
| Dimensions | 166 × 40 × 28 mm |
| Output Voltage | 15–42V DC |
| Dimming Type | PWM |
| Efficiency | ~85% |
| Power Factor | >0.98 |
| THD | <5% |
| Insulation Class | Class II |
| Certifications | CE, RoHS |
Get in touch with your project details and we will confirm stock and pricing within the same business day.
