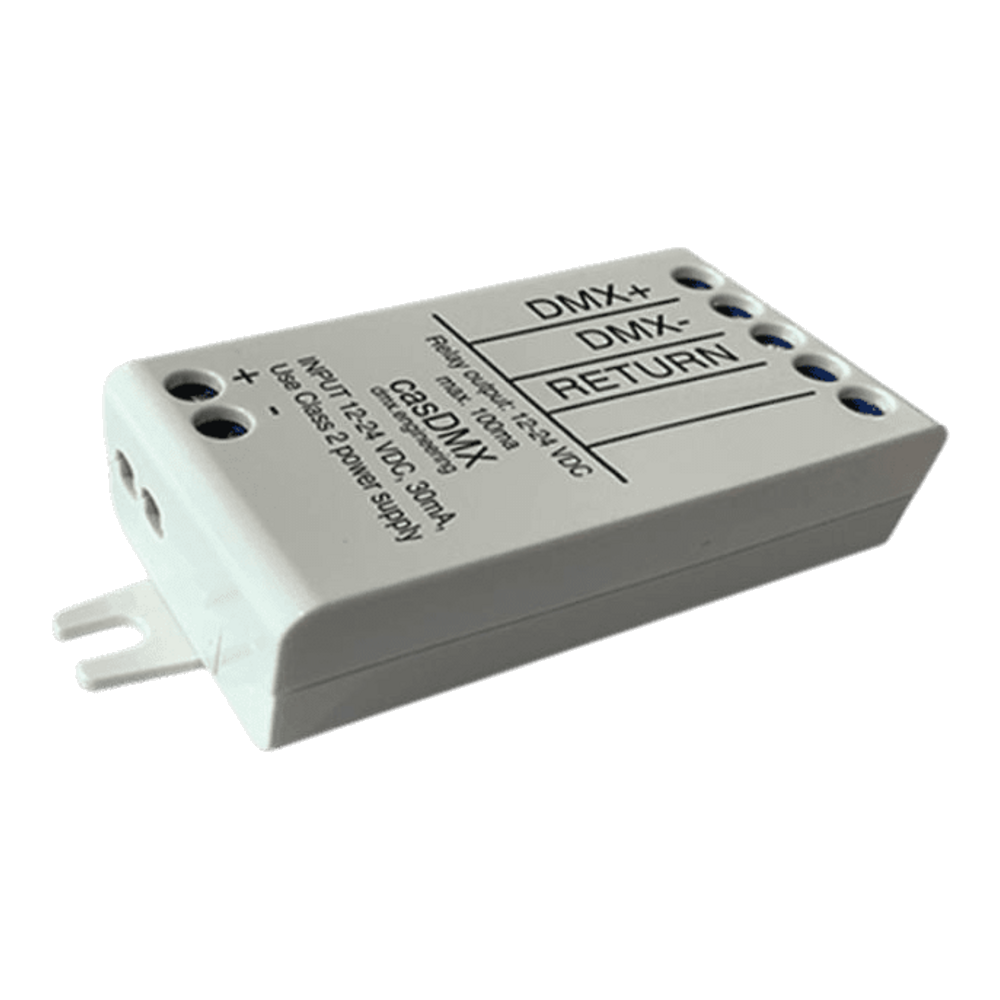

Outputs a 3-wire non-isolated DMX-512 signal with control over up to 8 DMX channels, all driven wirelessly from the Casambi app or any Casambi keypad. Architectural wash lights, LED par cans, and DMX512-compatible fixtures can be integrated into a Casambi network — without a dedicated lighting console.
Key Benefits
Outputs a standard 3-wire non-isolated DMX-512 signal controlling up to 8 DMX channels. Suitable for architectural fixtures, LED wash lights, and DMX-compatible devices where per-channel colour and intensity control is required.
Eliminates the dedicated DMX lighting console from the equipment rack. Scenes are stored in the Casambi network and recalled from the app or a Casambi keypad — simplifying the AV and lighting setup significantly.
The CasDMX joins the Casambi network alongside other Casambi devices — LED drivers, sensors, and switches — letting you unify all lighting control in one app rather than managing separate systems.
Technical Specifications
| DMX Output | DMX-512 master, up to 8 channels (3-wire, non-isolated) |
| Connector | Screw terminals |
| Supply Voltage | 12–24V DC, Class 2 (30 mA no-load) |
| Wireless Protocol | Casambi (Bluetooth 5.0 LR) |
| Radio Frequency | 2.401–2.483 GHz, +8 dBm |
| Operating Temperature | -25°C to +45°C |
| Case Max Temperature | +75°C |
| Storage Temperature | -25°C to +75°C |
| Dimensions | 72.6 × 30.0 × 18.0 mm |
| Weight | 23 g |
| Certifications | CE, RoHS |
Get in touch with your project details and we will confirm stock and pricing within the same business day.
