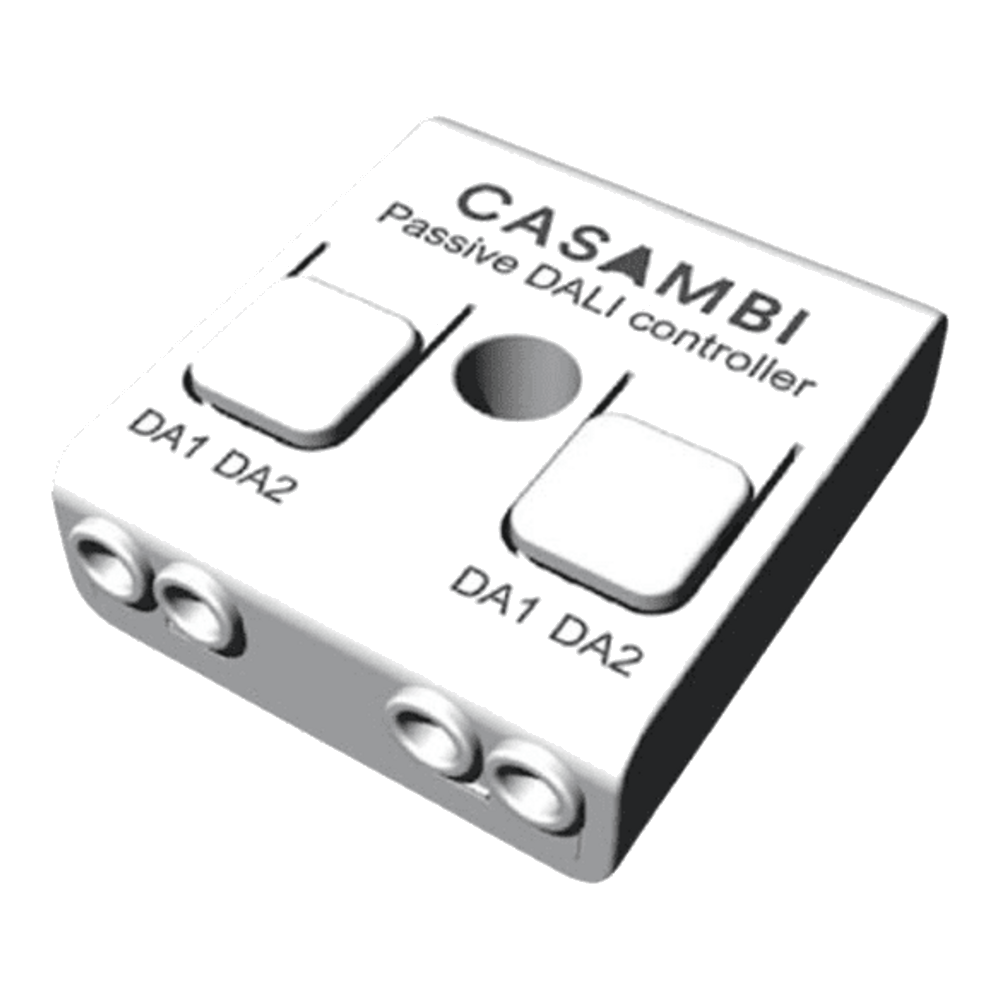

A Bluetooth-controllable, Casambi-enabled DALI controller that draws power directly from the DALI bus and brings DALI drivers into the Casambi wireless mesh. Supports DT6, DT8, tunable white, and RGB control with presence detection and daylight harvesting via DALI sensors.
Key Benefits
A single CBU-DCS brings up to 3 DALI addresses into the Casambi mesh, supporting DT6, DT8 tunable white, and RGB control — giving you full wireless command over DALI luminaires without a dedicated DALI gateway.
Connects directly to DALI-compatible presence sensors and light-level sensors for automated occupancy-based switching and daylight-linked dimming — reducing energy consumption without any additional controllers.
Powered directly from the DALI bus itself with no additional power supply needed. Dual parallel connector sets allow easy daisy-chain wiring between multiple DALI devices, simplifying installation in new and retrofit projects.
Technical Specifications
| Power Source | DALI bus powered (9.5–22.5V DC) |
| Idle Current | 5 mA (peak 30 mA) |
| Max DALI Bus Load | 250 mA |
| RF Frequency | 2400–2480 MHz, +4 dBm |
| Wireless Protocol | Casambi BLE Mesh |
| Bluetooth Range | Up to 30m indoors / 50m open air |
| Mounting | Behind switch plate / surface |
| Ingress Protection | IP20 |
| Operating Temperature | -20°C to +55°C |
| Case Max Temperature | +65°C |
| Storage Temperature | -25°C to +75°C |
| Dimensions | 40.4 × 36.3 × 14 mm |
| Weight | 15 g |
| Certifications | CE, RoHS |
