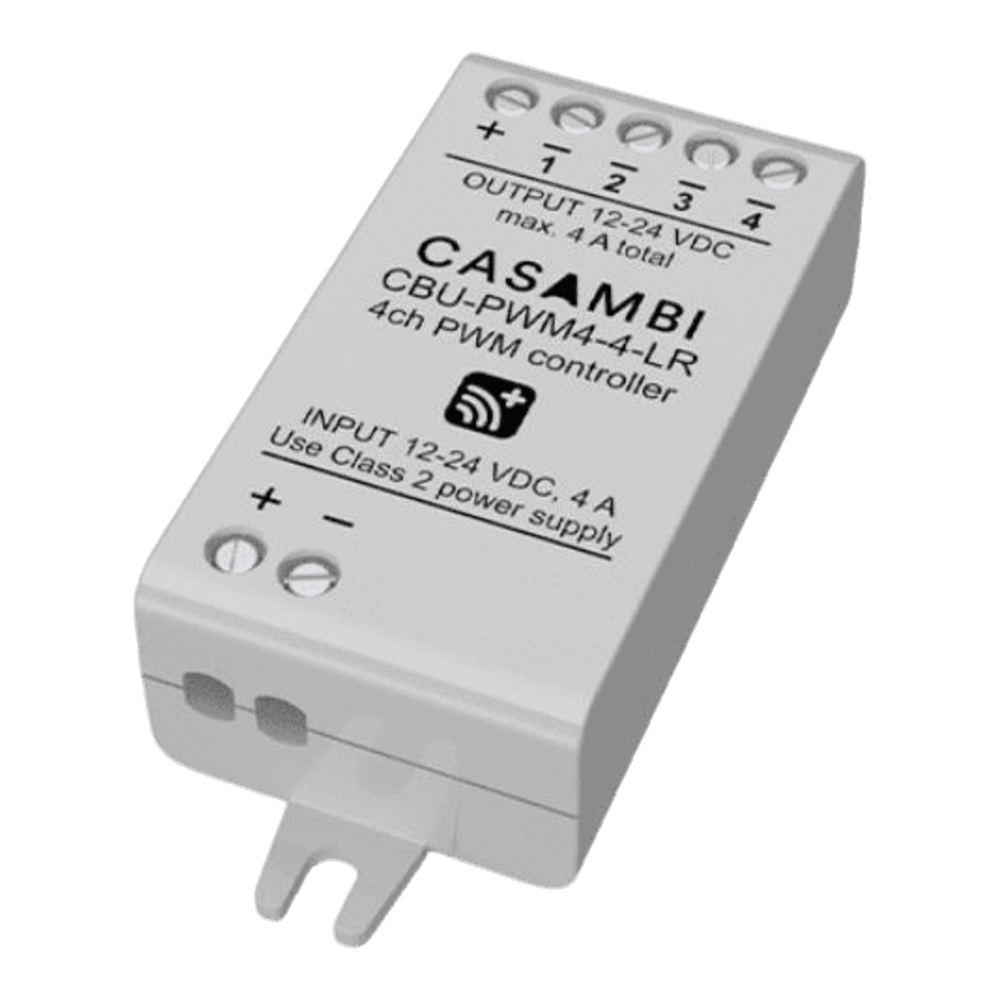

Four independent PWM output channels at 12–24V DC for controlling RGB, RGBW, tunable white, or multi-zone LED strip installations. The long-range Bluetooth radio ensures reliable Casambi mesh connectivity across large open areas, retail floors, and hospitality environments.
Key Benefits
Four independent channels cover every strip configuration — single colour, tunable white (warm + cool), RGB, and RGBW — all from one module with precise individual channel control.
The long-range radio maintains a stable Casambi mesh connection even in large open-plan spaces, eliminating the need for extra repeater nodes in medium-scale installations.
High-frequency PWM output eliminates visible flicker, delivering cinema-quality smooth dimming curves suited to hospitality, retail display, and broadcast-adjacent environments.
Technical Specifications
| Output Channels | 4 (independent PWM) |
| Supply Voltage | 12–24V DC |
| Max Output Power | 144W @ 24V DC / 72W @ 12V DC |
| Max Output Current | 6.0A total (freely divisible across channels) |
| Dimming Range | 0.1%–100% (flicker-free) |
| RF Frequency | 2402–2480 MHz, +8 dBm |
| Wireless Protocol | Casambi BLE Mesh (LR) |
| Bluetooth Range | Up to 50m indoors / 200m open air |
| PWM Frequency | 400 Hz |
| Strip Compatibility | RGB, RGBW, Tunable White, CCT |
| Insulation Class | Class II |
| Ingress Protection | IP20 |
| Operating Temperature | -20°C to +45°C |
| Case Max Temperature | +75°C |
| Storage Temperature | -25°C to +75°C |
| Dimensions | 72.6 × 30 × 18 mm |
| Weight | 23 g |
| Certifications | CE, RoHS, AU/NZ |
Get in touch with your project details and we will confirm stock and pricing within the same business day.
