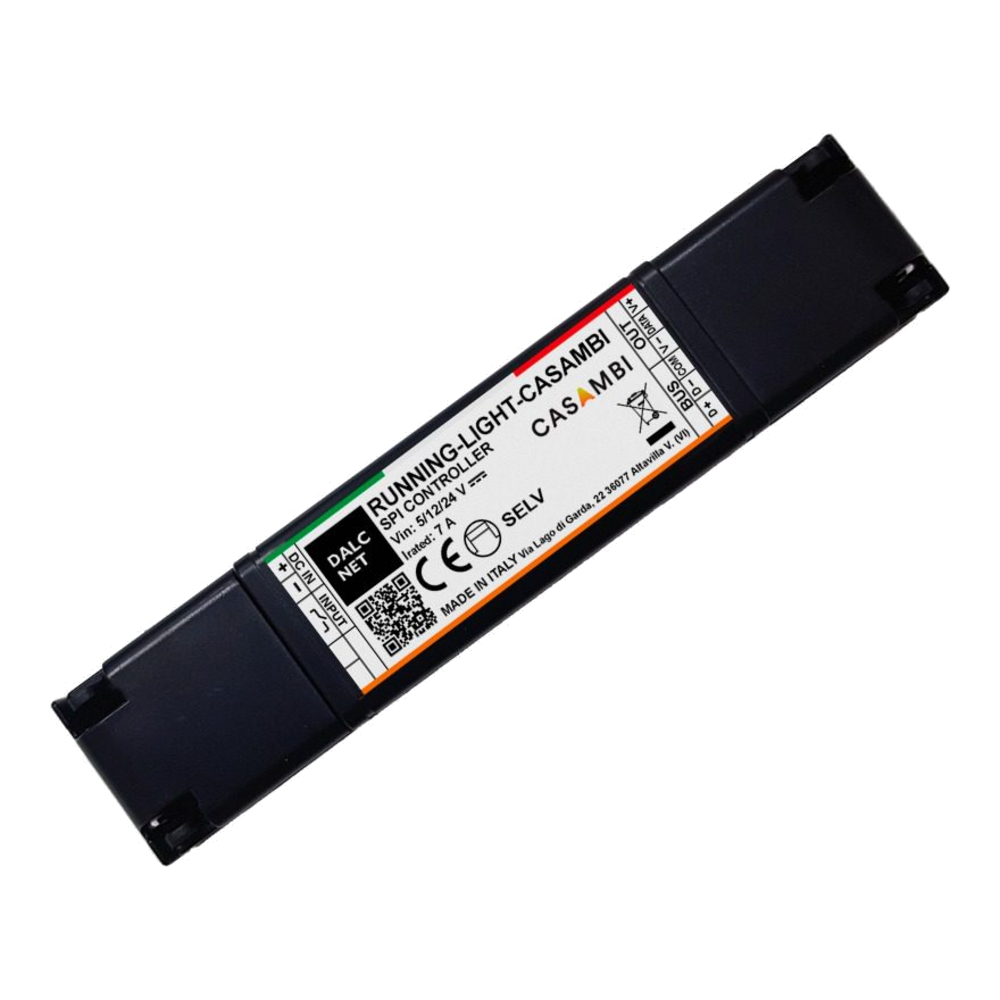

SPI protocol controller that brings addressable LED strips — WS2812B, SK6812, and compatible ICs — under full Casambi wireless control. Enables pixel-level effects, dynamic animations, chasing sequences, and colour transitions all configurable from the Casambi app without writing any code.
Key Benefits
Each pixel on a WS2812B or SK6812 strip is independently addressable via SPI, enabling running lights, comet trails, rainbow fills, and zone-based effects — all without requiring a microcontroller or custom firmware.
Animations and effects are selected and triggered directly in the Casambi app — no coding knowledge needed. Effects can be tied to scenes, schedules, or sensor events alongside the rest of the lighting network.
Supports strips of up to 2000 individually addressable LEDs per controller unit — covering large architectural feature installations, long cove lighting runs, and signage applications without needing multiple controllers.
Technical Specifications
| Output Protocol | SPI (WS2812B, SK6812, compatible) |
| Max Addressable LEDs | Up to 2000 |
| Supply Voltage | 5–24V DC (5V / 12V / 24V) |
| Max Output Current | 7A |
| Rated Power | 35W @ 5V / 84W @ 12V / 168W @ 24V |
| Wireless Protocol | Casambi (Bluetooth 5.0) |
| Radio Frequency | 2402–2483 MHz, +7 dBm |
| Operating Temperature | -10°C to +60°C |
| Case Max Temperature | +80°C |
| Storage Temperature | -40°C to +60°C |
| Dimensions | 136 × 29 × 21 mm |
| Weight | 58 g (with packaging) |
| Certifications | CE, RoHS |
