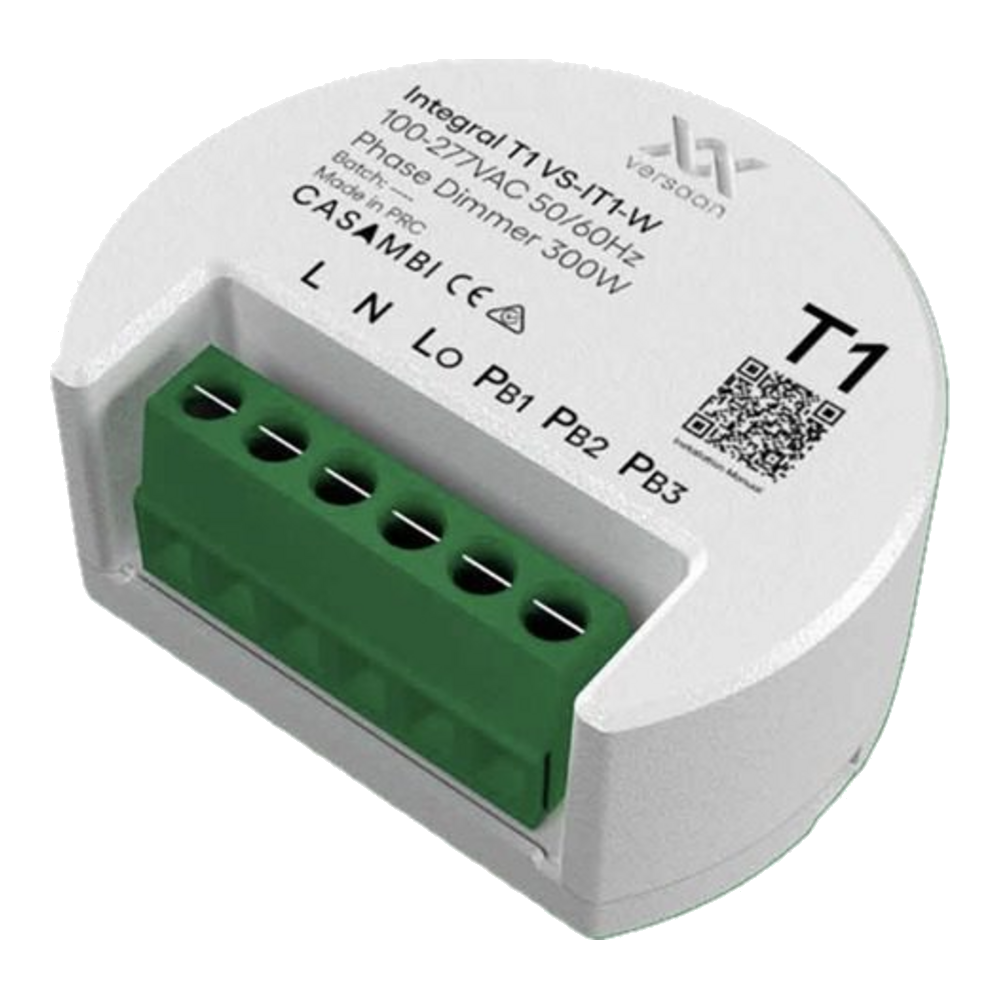

High-performance wireless phase dimmer with integrated Casambi Bluetooth control. Handles up to 300W of dimmable loads across a wide 100–277V AC supply range, fitting inside standard switchboxes alongside traditional push button switches. Part of the Versaan Integral range for residential and commercial projects.
Key Benefits
Operates across 100–277V AC — compatible with both domestic and commercial supply voltages worldwide. Suitable for residential retrofits and new commercial builds without voltage adaptation.
Compact circular form fits inside standard switchboxes, connecting directly to existing push button wiring. Three push button inputs enable on/off, dimming, and scene control via Casambi.
Once commissioned via the Casambi app, the dimmer joins the mesh network and responds to scenes, schedules, sensor input, and manual touch — all without a hub or gateway on site.
Technical Specifications
| Supply Voltage | 100–277V AC, 50/60 Hz |
| Output | 300W Phase Dim |
| Push Button Inputs | 3 |
| Wireless Protocol | Casambi (incl. Long Range) |
| Wireless Range | 98 m / LR 180 m (open-air, line of sight) |
| Transceiver Frequency | 2.4 GHz ISM Band |
| Operating Temperature | 0°C to +55°C |
| Dimensions | 52 × 42.51 × 22 mm |
| Terminal Capacity | 2.5 mm² |
| Ingress Protection | IP20 |
| Warranty | 2 Years |
