SAL-2016

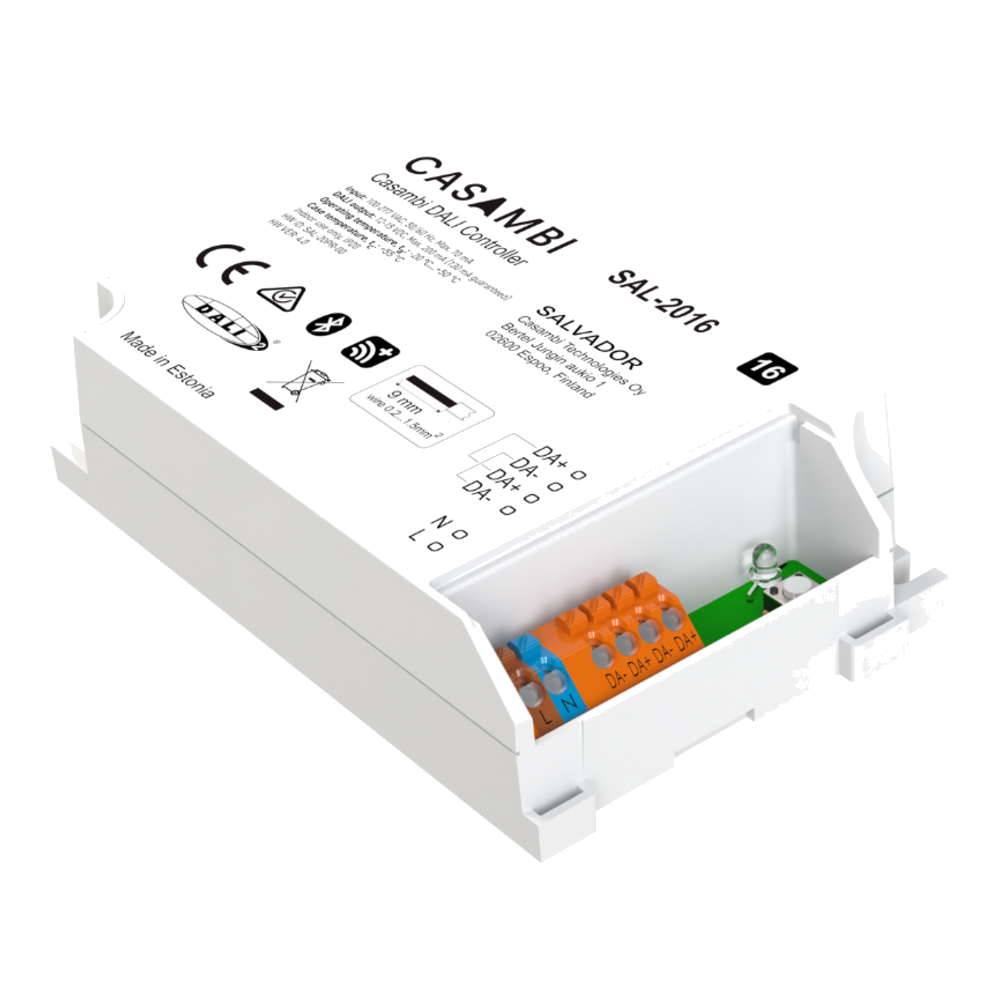

Salvador SAL-2016 DALI–Casambi Bridge

The SAL-2016 seamlessly integrates wired DALI drivers into the Casambi wireless lighting control system. It addresses up to 16 DALI driver addresses, making DALI luminaires appear as virtual devices within a Casambi network. A built-in 130 mA bus power supply means no separate DALI power source is needed, and a built-in real-time clock keeps scheduled scenes running autonomously. Commissioning is done entirely through the Casambi app — no DALI-USB dongles, no PC software.

Get a Quote Back to Salvador Series

Key Benefits

Why choose the Salvador SAL-2016

16 DALI addresses

Control up to 16 DALI-addressed drivers from a single unit. Each DALI device appears as an individual virtual fixture within the Casambi network, supporting full group and scene control.

Built-in bus power

Integrated 130 mA DALI bus power supply eliminates the need for a separate DALI PSU. Simplifies panel layouts and reduces component count on smaller installations.

D4i · DT6 · DT8 support

Full compatibility with DALI D4i energy reporting, DT6 colour temperature, and DT8 colour control standards. Works with the broad range of DALI drivers on the market.

Technical Specifications

Specifications

Model	SAL-2016
DALI Addresses	Up to 16
Input Voltage	100–277 VAC, 50/60 Hz
Max Mains Current	70 mA
Inrush Current	20 A
DALI Bus Voltage	12–15 VDC
DALI Bus Current	130 mA guaranteed / 200 mA max
Max Shutdown Current	<4 mA
DALI Standards	D4i, DT6, DT8
Real-Time Clock	Built-in, 12-hour backup
Wireless	Casambi (Bluetooth 5.0), 2402–2480 MHz, +8 dBm
Dimensions	106.0 × 67.0 × 28.0 mm
Weight	100 g
Wire Range	0.2–1.5 mm²
Ingress Protection	IP20 (indoor)
Operating Temperature	-20°C to +50°C ambient / +55°C case max
Storage Temperature	-25°C to +75°C
Humidity	0–80% non-condensing
Certifications	CE, RCM
