SAL-2064

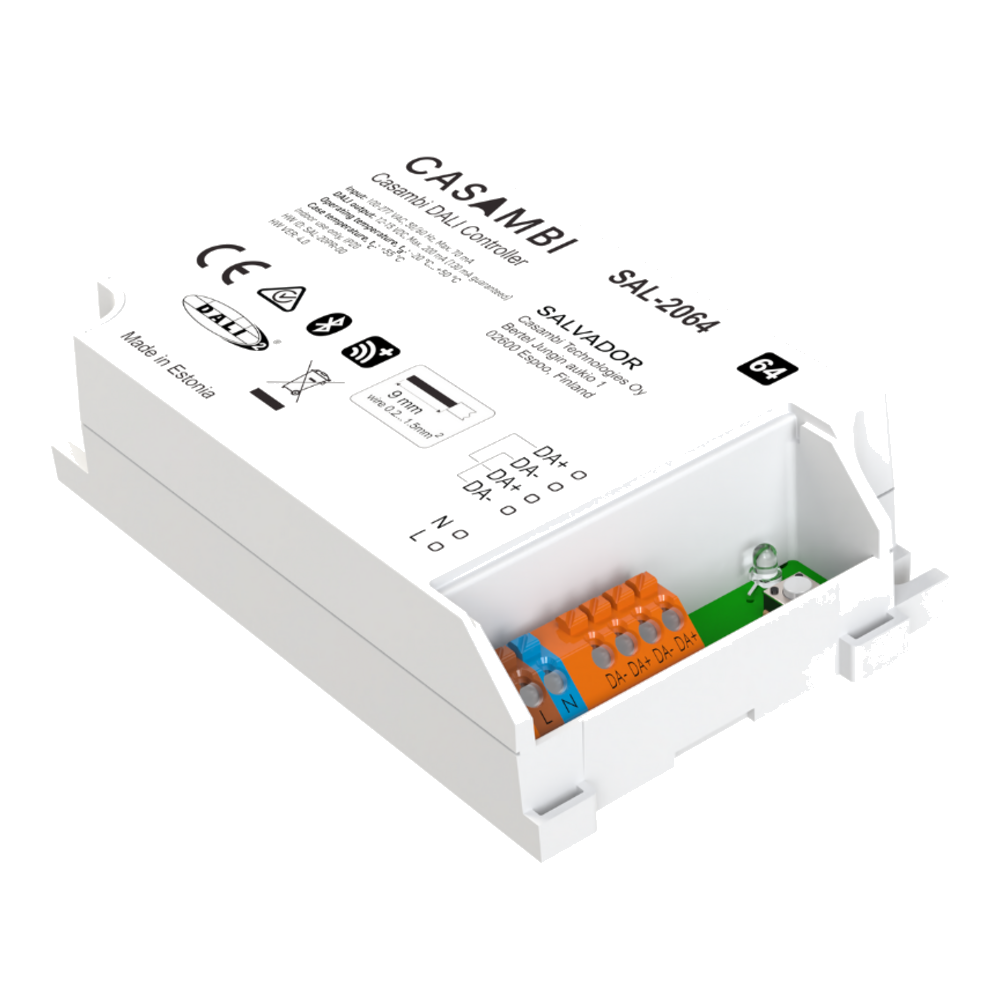

Salvador SAL-2064 DALI–Casambi Bridge

The SAL-2064 is the highest-capacity unit in the Salvador Series 2000, bridging up to 64 DALI driver addresses into the Casambi wireless mesh on a single bus. Like the rest of the series, it includes a built-in 130 mA DALI bus power supply and a real-time clock with backup for autonomous scheduling. Supports DALI D4i, DT6, and DT8 standards. All configuration is done through the Casambi app — individual control of every driver, no DALI-USB tools or PC software required.

Get a Quote Back to Salvador Series

Key Benefits

Why choose the Salvador SAL-2064

64 DALI addresses

The highest capacity in the Salvador range — covers large commercial floors, hotel zones, and multi-tenancy spaces where a single unit needs to manage the full DALI bus.

Single-unit for large DALI buses

When a single DALI bus needs to address more than 32 drivers — large open-plan offices, hotel floors, multi-zone retail — the SAL-2064 covers the full 64-address ceiling from one Casambi node. Avoids the cost and complexity of splitting into multiple smaller Salvador units.

D4i · DT6 · DT8 support

Full compatibility across DALI D4i energy reporting, DT6 dimming, and DT8 colour control. Works with virtually all DALI-2 compliant drivers from any manufacturer.

Technical Specifications

Specifications

Model	SAL-2064
DALI Addresses	Up to 64
Input Voltage	100–277 VAC, 50/60 Hz
Max Mains Current	70 mA
Inrush Current	20 A
DALI Bus Voltage	12–15 VDC
DALI Bus Current	130 mA guaranteed / 200 mA max
Max Shutdown Current	<4 mA
DALI Standards	D4i, DT6, DT8
Real-Time Clock	Built-in, 12-hour backup
Wireless	Casambi (Bluetooth 5.0), 2402–2480 MHz, +8 dBm
Dimensions	106.0 × 67.0 × 28.0 mm
Weight	100 g
Wire Range	0.2–1.5 mm²
Ingress Protection	IP20 (indoor)
Operating Temperature	-20°C to +50°C
Case Max Temperature	+55°C
Storage Temperature	-25°C to +75°C
Humidity	0–80% non-condensing
Certifications	CE, RCM
