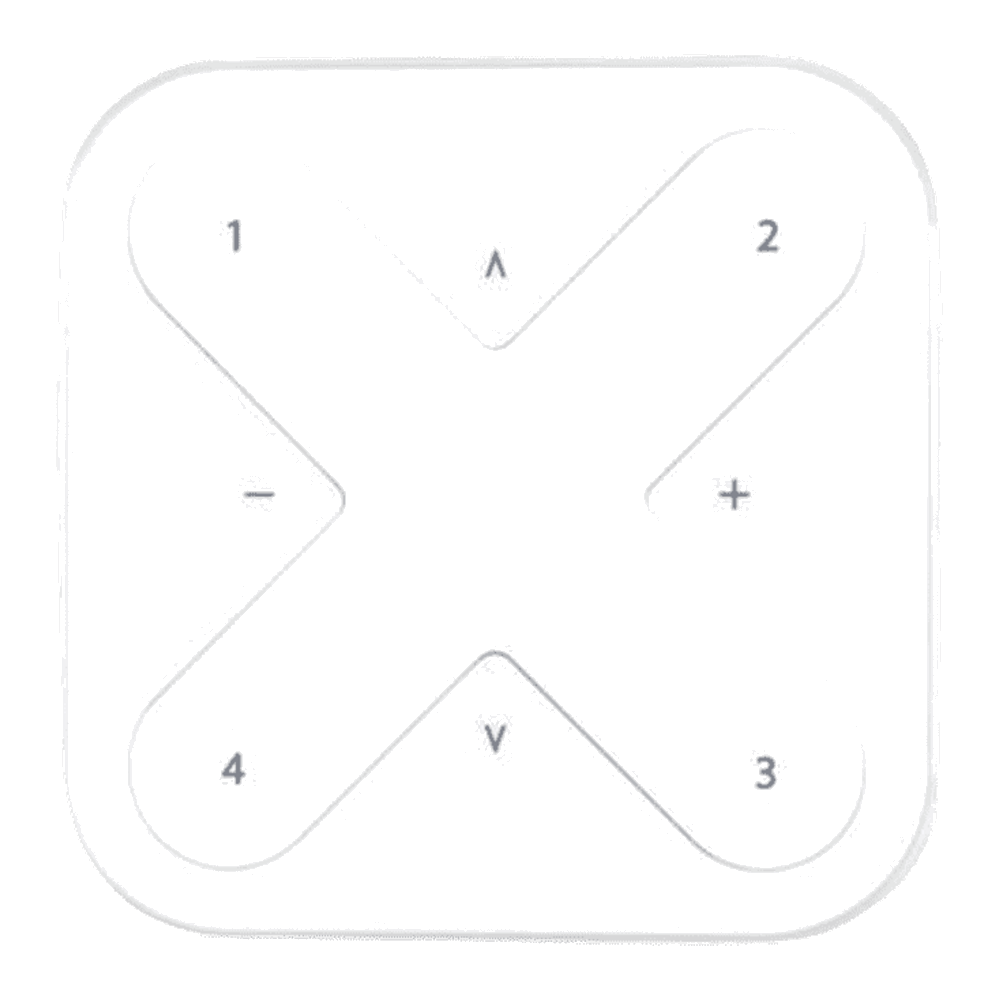

Casambi Xpress-LR Wireless Controller

The Casambi Xpress-LR is a compact, battery-powered wireless controller with 4 scene buttons plus dim up/down and CCT up/down designed to join and control any Casambi mesh network. Each button is independently configurable — assign scene recall, dimming, group on/off, or colour temperature commands via the Casambi app. The LR (Long Range) Bluetooth 5.0 radio delivers extended coverage, making it ideal for open-plan offices, large retail floors, and hotel lobbies where a single controller needs to reach multiple zones.

Colour

White

Get a Quote Back to Switches

Key Benefits

Why specify the Xpress-LR

Long-Range Bluetooth 5.0

The LR radio mode extends operating range significantly beyond standard Bluetooth, covering large open-plan floors and reaching across partitions. One Xpress-LR can command the entire mesh from a boardroom podium or hotel reception desk.

Configurable scene, dim and CCT buttons

Four target buttons recall any Casambi scene, plus dedicated dim up/down and CCT up/down buttons for instant tunable-white control. Every assignment reconfigured from the app with no rewiring.

Battery-powered — zero wiring

Runs on a single CR2430 coin cell with multi-year battery life under normal use. No electrical connection required — stick it to any surface, desk, furniture, or AV rack with the included double-sided tape or use the optional mounting bracket.

Technical Specifications

Specifications

Model	Casambi Xpress-LR
Buttons	4 scene buttons + dim up/down + CCT up/down
Wireless Protocol	Casambi (Bluetooth 5.0 LR), 2402–2480 MHz
RF Output Power	+8 dBm
Power Supply	1 × CR2430 (3V)
Battery Life	Up to 5 years (typical use)
Operating Temperature	0°C to +40°C
Storage Temperature	-25°C to +70°C
Dimensions	90 × 90 × 12 mm
Weight	72 g
Ingress Protection	IP20
Certifications	CE, AU/NZ
Mounting	Double-sided adhesive / optional bracket
