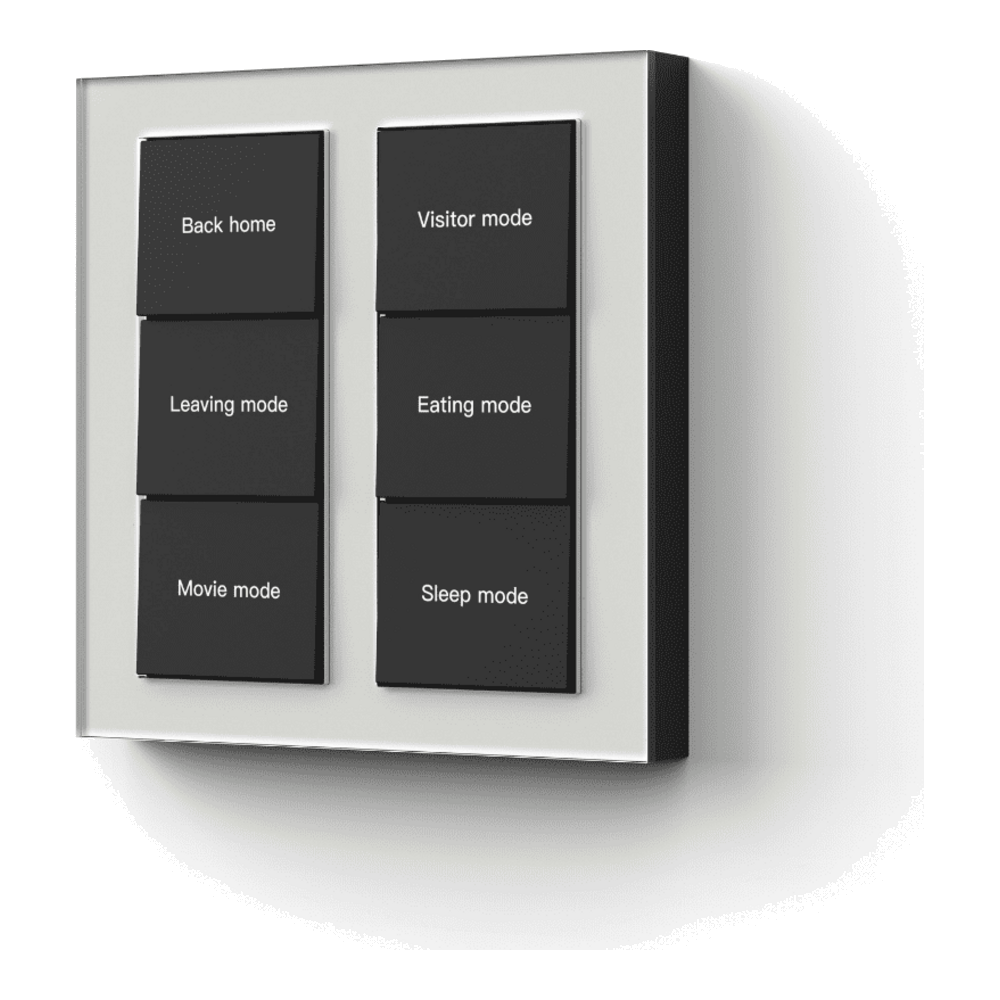

Siqitech D1 6-Button Mains Scene Switch

The D1 6-Button Mains Switch delivers six independently programmable scene buttons in a clean panel format that fits standard 86 mm backboxes — compatible with Indian modular switch plates. Mains-powered at 230 V, it connects directly to the Casambi mesh, and the two on-board 300 W relay outputs let it drive lighting circuits directly without an additional dimmer/driver for rock-solid wireless control. Six buttons provide ample scene control for conference rooms, hotel suites, restaurant dining areas, or any space requiring multiple preset lighting states.

Colour

White

Get a Quote Back to Switches

Key Benefits

Why specify the D1 6-Button Mains

86 mm backbox fit

Designed for standard Indian and international 86 mm modular backboxes. Replaces conventional switch plates with a premium Casambi-connected panel — no new chasing, no additional conduit.

Mains-powered reliability

Mains connection (230 V) means no battery maintenance, ever. The switch draws under 1 W in standby and maintains a stable Casambi mesh node for always-on responsiveness. Two on-board 300 W switching outputs can drive lighting circuits directly.

6 scenes — one panel

Six named scenes accessible from a single panel: Morning, Meeting, Presentation, Dining, Cleaning, Off — or any combination you define. Reconfigured at any time from the Casambi app without touching the hardware.

Technical Specifications

Specifications

Model	D1-6B-M
Buttons	6 independently configurable scene buttons
Wireless Protocol	Casambi (Bluetooth 5.0), 2402–2480 MHz
RF Output Power	+4 dBm
Input Voltage	230 VAC, 50/60 Hz
Switching Outputs	2 × 300 W (resistive)
LED Backlight	Dimmable
Standby Consumption	< 1 W
Operating Temperature	-10°C to +60°C
Dimensions	86 × 86 × 10.5 mm
Weight	130 g
Mounting	Standard 86 mm backbox
Finish	White gloss
Ingress Protection	IP20
Certifications	CE, RoHS
