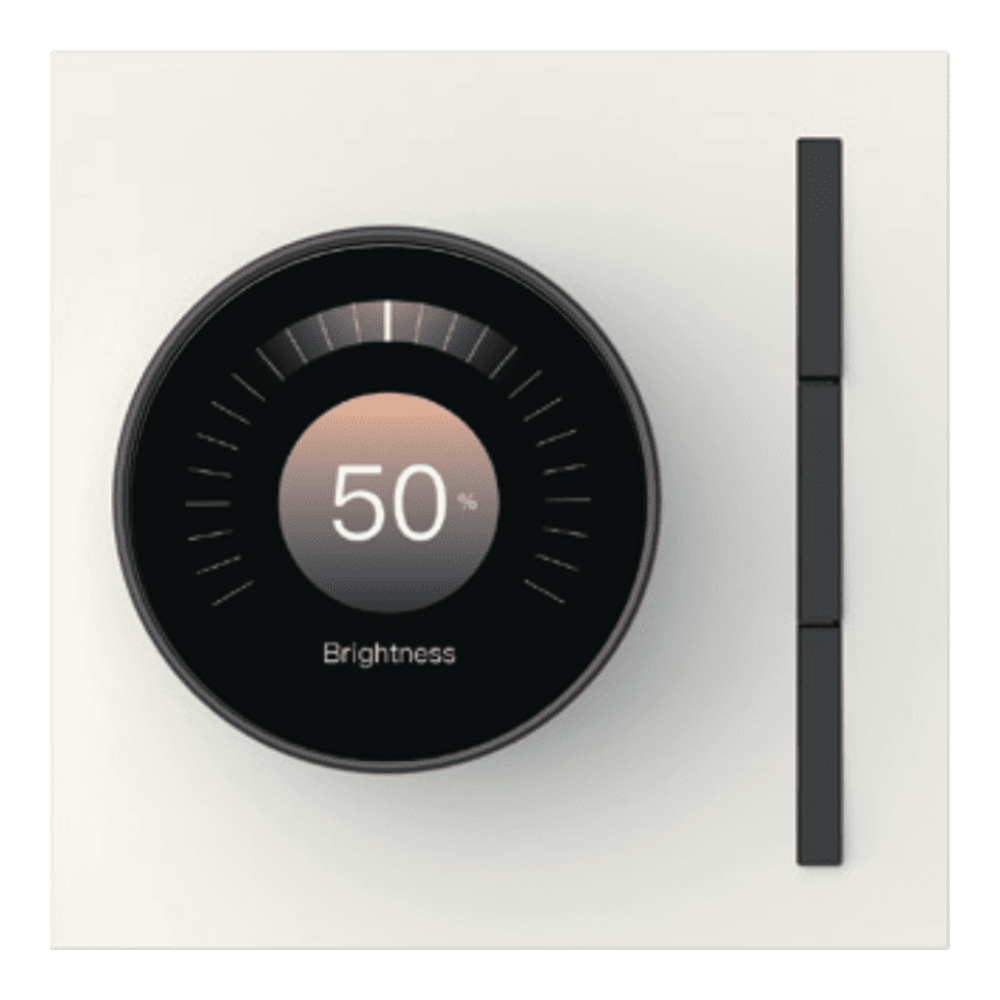

Siqitech D1 Rotary LCD Scene Switch

The D1 Rotary LCD Switch is the premium tier of the D1 rotary range, adding a backlit LCD display that shows the current scene name and dim level at a glance. Combine intuitive rotary dimming with three scene shortcut buttons and a clear display in a mains-powered panel that fits standard 86 mm backboxes. Particularly well-suited for hotel guest rooms, restaurant private dining, and premium residential installations where a polished user experience is non-negotiable.

Colour

White

Get a Quote Back to Switches

Key Benefits

Why specify the D1 Rotary LCD

LCD scene display

The backlit LCD shows the active scene name and current brightness percentage — guests and users always know which scene is active without opening an app. Eliminates uncertainty and reduces front-desk queries in hospitality environments.

Smooth rotary dimming

High-resolution rotary encoder provides fine, flicker-free brightness adjustment across the full dimming range. The tactile feel rivals premium European switches — designed for spaces where build quality matters as much as function.

Mains reliability, premium finish

Mains-powered (110–240V) for zero battery maintenance. Slim profile panel with premium white gloss finish. Fits existing 86 mm backboxes — replace a conventional dimmer plate with zero additional cabling.

Technical Specifications

Specifications

Model	D1-ROT-LCD
Controls	Rotary encoder + 3 scene buttons + LCD display
Display	Backlit LCD — shows scene name & dim level %
Wireless Protocol	Casambi (Bluetooth 5.0), 2402–2480 MHz
RF Output Power	+4 dBm
Input Voltage	110–240 VAC, 50/60 Hz
Standby Consumption	< 1.5 W
Operating Temperature	-10°C to +60°C
Dimensions	86 × 86 × 54.5 mm (knob protrudes 16 mm)
Weight	173 g
Mounting	Standard 86 mm backbox / Indian modular plate
Finish	White gloss
Ingress Protection	IP20
Certifications	CE, RoHS
